MV-ID2013EM-05-RBN
Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05-RBN
mv-id2013em-05-rbn
Smart Code Reader

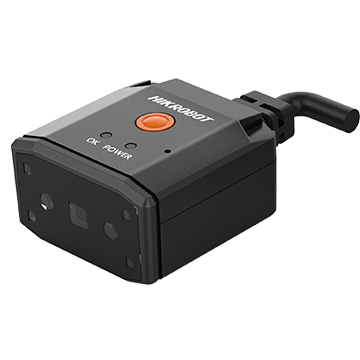

The Hikrobot MV-ID2013EM-05-RBN (ID reader) is a fixed-mount smart code reader for 1D/2D codes and DPM in triggered or free-run station setups.
Imager 1280 × 1024. 50 fps. Mono Optics M5.8-mount. Illumination 0 lux to 10000 lux.
Variants differ in focal length, lighting, and cover (including polarization): narrower FOV / longer focal length for fine modules at distance; wider FOV for larger labels closer in.
Beschikbare configuraties
- mv-id2013em-05-rbn — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05-RBN
- mv-id2013em-05-rbp — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red (polarized) · 05-RBP
- mv-id2013em-05-wbn — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · White · 05-WBN
- mv-id2013em-05-wbp — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · White (polarized) · 05-WBP
- mv-id2013em-03n-rbn — 2.5 W @ 12 VDC · 2.45 mm · Red · 03N-RBN
- mv-id2013em-03n-rbp — 2.5 W @ 12 VDC · 2.45 mm · Red (polarized) · 03N-RBP
- mv-id2013em-05h-rbn — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05H-RBN
- mv-id2013em-05h-rbp — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red (polarized) · 05H-RBP
- mv-id2013em-05n-rbp — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red (polarized) · 05N-RBP
- mv-id2013em-05-rbn-s — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05-RBN-S
- mv-id2013em-05-rbn-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05-RBN-U
- mv-id2013em-05-rbp-s — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05-RBP-S
- mv-id2013em-05-rbp-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red (polarized) · 05-RBP-U
- mv-id2013em-05-wbn-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · White · 05-WBN-U
- mv-id2013em-05-wbp-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · White (polarized) · 05-WBP-U
- mv-id2013em-05-rbn-su — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05-RBN-SU
- mv-id2013em-05-rbp-su — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05-RBP-SU
- mv-id2013em-05h-rbn-s — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05H-RBN-S
- mv-id2013em-05h-rbn-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05H-RBN-U
- mv-id2013em-05n-rbn-s — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05N-RBN-S
- mv-id2013em-05n-rbn-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05N-RBN-U
- mv-id2013em-05h-rbn-su — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05H-RBN-SU
- mv-id2013em-05n-rbn-su — 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05N-RBN-SU · Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC
Select variant
SKU: mv-id2013em-05-rbn
Specifications
| Aiming system | Green LED |
|---|---|
| Ambient illumination | 0 lux to 10000 lux |
| Certification | CE, RoHS, KC |
| Client software | IDMVS |
| Dimension | 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") |
| Exposure time | 60 μs to 0.6 sec |
| Gain | 1 dB to 28 dB |
| Humidity | 20% RH to 95% RH (no condensation) |
| Indicator | Power indicator (POWER), status indicator (OK/NG) |
| Ingress protection | IP54 |
| Lens mount | M5.8-mount |
| Max. frame rate | 50 fps |
| Max. reading speed | 30 codes/sec |
| Mono/color | Mono |
| Focal length | 4.7 mm |
| Light source | Red |
| Max. power consumption | Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC |
| Model | 05-RBN |
| Pixel size | 2.7 μm × 2.7 μm |
| Resolution | 1280 × 1024 |
| Sensor size | 1/4" |
| Sensor type | CMOS, global shutter |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Weight | Approx. 68.5 g (0.2 lb.) |
