MV-CU200-20GC
5.9 fps @ 5120 × 3840 Bayer GR 8
mv-cu200-20gc
Area Scan Camera

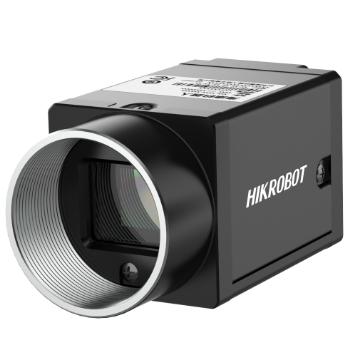

The Hikrobot MV-CU200-20GC (CU-series) is an area-scan camera with rolling shutter at 5120 × 3840. Sensor format 1/1.8", pixel size 1.4 μm × 1.4 μm.
Sensor options: AR2020. Frame rate depends on the selected pixel mode (e.g. 5.9 fps @ 5120 × 3840 Bayer GR 8). Interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s). Lens mount: C-mount.
Bayer/color when chromatic information is required; mono when contrast, metrology, or codes under controlled lighting dominate. Rolling shutter: with motion during exposure plan strobe or stop-motion, or accept geometric skew.
Beschikbare configuraties
- mv-cu200-20gc — 5.9 fps @ 5120 × 3840 Bayer GR 8
- mv-cu200-20gm — 5.9 fps @ 5120 × 3840 Mono 8
Select variant
SKU: mv-cu200-20gc
Specifications
| Certification | CE, RoHS, KC |
|---|---|
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Compatibility | GigE Vision V2.0, GenICam |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Decimation | Not supported |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Dimension (without lens) | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Exposure mode | Off/Once/Continuous exposure mode |
| Exposure time | 53 μs to 10 sec |
| Gain | 0 dB to 48 dB |
| Humidity | 20% RH to 95% RH, no condensation |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Lens mount | C-mount |
| Operating system | 32/64-bit Windows XP/7/10/11, 32/64-bit Linux and 64-bit MacOS |
| Max. frame rate | 5.9 fps @ 5120 × 3840 Bayer GR 8 |
| Pixel size | 1.4 μm × 1.4 μm |
| Power consumption | Typ. 2.0 W @ 12 VDC |
| Power supply | 9 VDC to 24 VDC; PoE is optional |
| Resolution | 5120 × 3840 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Sensor model | AR2020 |
| Sensor size | 1/1.8" |
| Sensor type | CMOS, rolling shutter |
| SNR | 39 dB |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Weight | Approx. 100 g (0.2 lb.) |
