MV-CH140-60GC
9 fps @ 4708 × 2824 Bayer GR 8
mv-ch140-60gc
Area Scan Camera

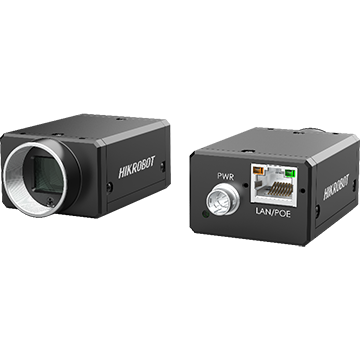

The Hikrobot MV-CH140-60GC (CH-series) is an area-scan camera with global shutter at 4708 × 2824. Sensor format 1", pixel size 3 μm × 3 μm.
Sensor options: Stacked BSI. Frame rate depends on the selected pixel mode (e.g. 9 fps @ 4708 × 2824 Bayer GR 8). Available with GigE and USB3 interfaces. Lens mount: C-mount.
GigE variants (GC/GM) for longer cable runs and multi-camera networks; USB3 (UC/UM) for short host links. Bayer/color when chromatic information is required; mono when contrast, metrology, or codes under controlled lighting dominate.
Beschikbare configuraties
- mv-ch140-60gc — 9 fps @ 4708 × 2824 Bayer GR 8
- mv-ch140-60gm — 9 fps @ 4708 × 2824 Mono 8
- mv-ch140-60um — 27 fps @ 4708 × 2824 Mono 8
Select variant
SKU: mv-ch140-60gc
Specifications
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
|---|---|
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Dynamic range | 56.9 dB |
| Exposure mode | Off/Once/Continuous exposure mode |
| Exposure time | 80 μs to 10 sec |
| Gain | 0 dB to 24 dB |
| Humidity | 20% to 95% RH, non-condensing |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Lens mount | C-mount |
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS |
| Max. frame rate | 9 fps @ 4708 × 2824 Bayer GR 8 |
| Pixel size | 3 μm × 3 μm |
| Resolution | 4708 × 2824 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Sensor model | Stacked BSI |
| Sensor size | 1" |
| Sensor type | CMOS, global shutter |
| SNR | 41.9 dB |
| Temperature | Working temperature: -10 °C to 50 °C (14 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
