MV-CA003-20GC
672 × 512
mv-ca003-20gc
Area Scan Camera

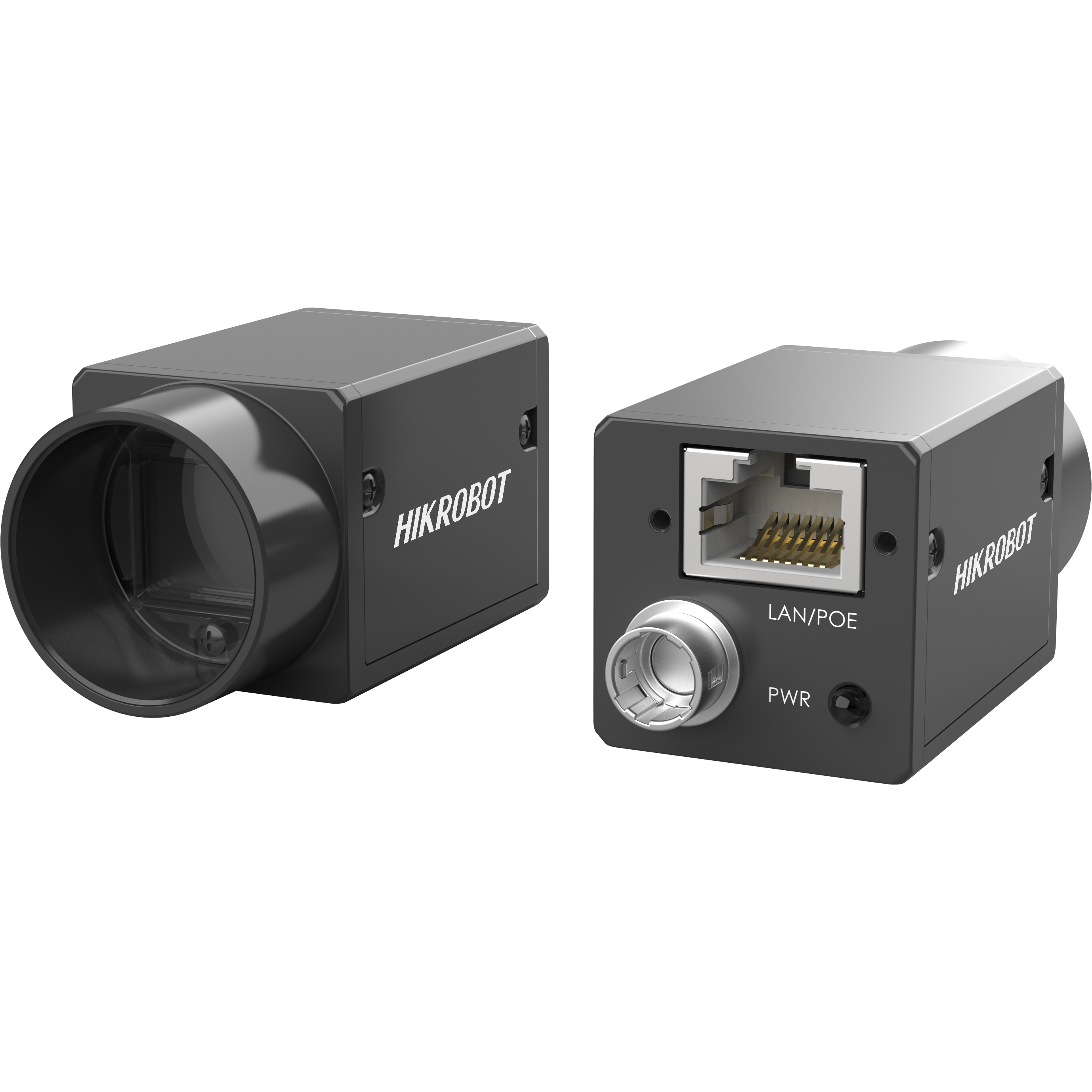

The Hikrobot MV-CA003-20GC (CA-series) is an area-scan camera with global shutter at 672 × 512 or 640 × 480. Sensor format 1/4", pixel size 4.8 μm × 4.8 μm.
Sensor options: PYTHON300. Available with GigE and USB3 interfaces. Lens mount: C-mount.
GigE variants (GC/GM) for longer cable runs and multi-camera networks; USB3 (UC/UM) for short host links. Color/Bayer build for tasks where hue or print matters. Resolution options 672 × 512 or 640 × 480.
Beschikbare configuraties
- mv-ca003-20gc — 672 × 512
- mv-ca003-21uc — 640 × 480
Select variant
SKU: mv-ca003-20gc
Specifications
| Certification | CE, RoHS, KC |
|---|---|
| Decimation | Supports 1 × 1, 2 × 2 |
| Dynamic range | 59 dB |
| Exposure mode | Off/Once/Continuous exposure mode |
| Exposure time | 40 μs to 10 sec |
| Gain | 0 dB to 15 dB |
| Humidity | 20% to 80% RH, non-condensing |
| Image buffer | 128 MB |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Lens mount | C-mount |
| Mono/color | Color |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Resolution | 672 × 512 |
| Pixel size | 4.8 μm × 4.8 μm |
| Reverse image | Supports horizontal and vertical reverse image output |
| Sensor model | PYTHON300 |
| Sensor size | 1/4" |
| Sensor type | CMOS, global shutter |
| SNR | 39.9 dB |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
