MV-CS060-RC
Not specified · IMX178 · USB3.0 · RC
mv-cs060-rc
Area Scan Camera

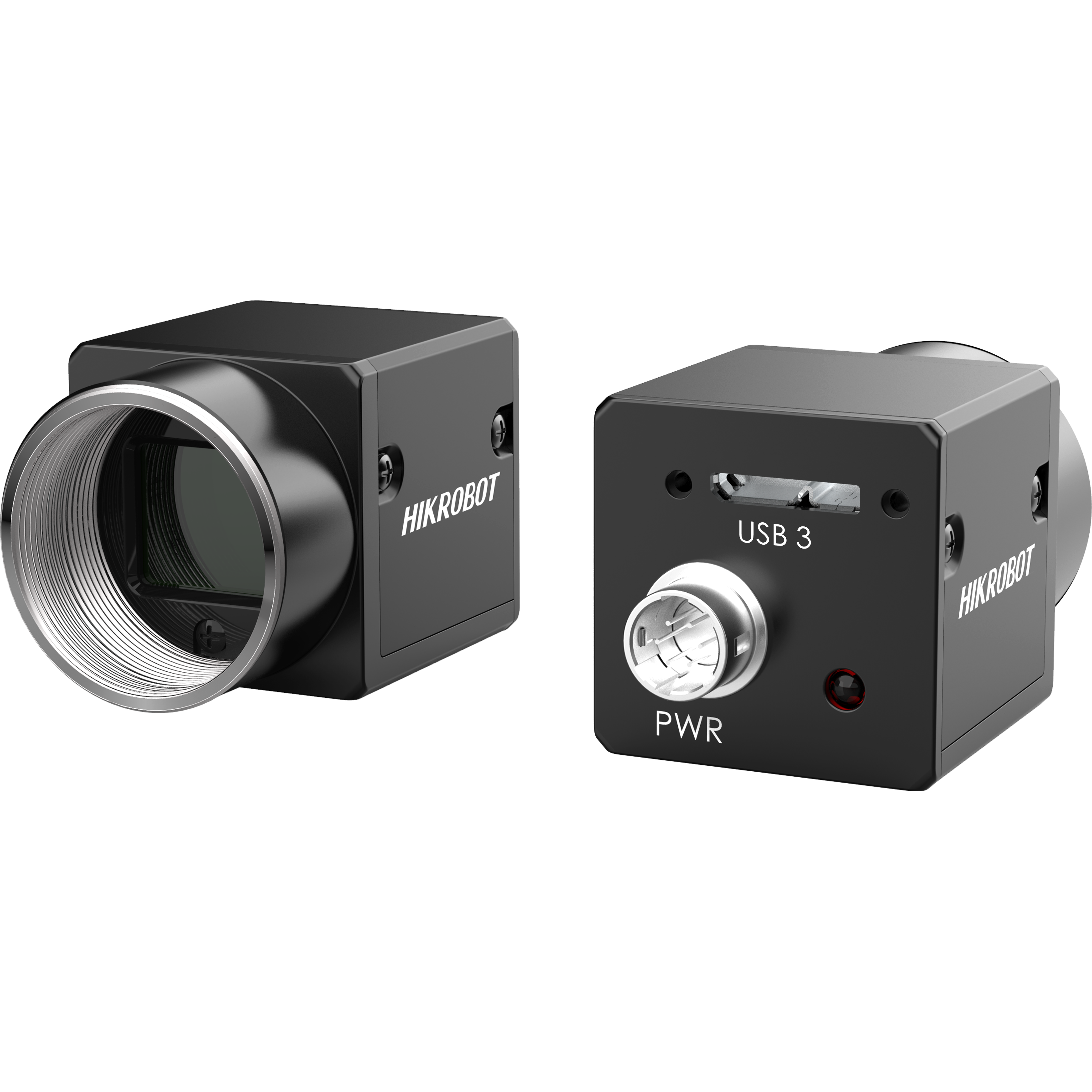

The Hikrobot MV-CS060-RC (CS-series) is an area-scan camera with rolling shutter at 3072 × 2048. Sensor format 1/1.8".
Sensor options: IMX178 or Sony® IMX178. Available with GigE and USB3 interfaces.
GigE variants (GC/GM) for longer cable runs and multi-camera networks; USB3 (UC/UM) for short host links. Bayer/color when chromatic information is required; mono when contrast, metrology, or codes under controlled lighting dominate. Sensor choice (IMX178 or Sony® IMX178): size to FOV, pixels-on-feature, and available optics. Rolling shutter: with motion during exposure plan strobe or stop-motion, or accept geometric skew.
Beschikbare configuraties
- mv-cs060-rc — Not specified · IMX178 · USB3.0 · RC
- mv-cs060-10gc — Color · Sony® IMX178 · Gigabit Ethernet, compatible with Fast Ethernet · 10GC
- mv-cs060-10gm — Mono · Sony® IMX178 · Gigabit Ethernet, compatible with Fast Ethernet · 10GM
- mv-cs060-10gc-pro — Color · Sony® IMX178 · Gigabit Ethernet, compatible with Fast Ethernet · 10GC-PRO
- mv-cs060-10gm-pro — Mono · Sony® IMX178 · Gigabit Ethernet, compatible with Fast Ethernet · 10GM-PRO
- mv-cs060-10uc-pro — Color · Sony® IMX178 · USB3.0, compatible with USB2.0 · 10UC-PRO
- mv-cs060-10um-pro — Mono · Sony® IMX178 · USB3.0, compatible with USB2.0 · 10UM-PRO
Select variant
SKU: mv-cs060-rc
Specifications
| Binning | Supports 1 × 1, 2 × 2 |
|---|---|
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset, Trigger Rolling, and Rolling |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Data interface | USB3.0 |
| Mono/color | Not specified |
| Sensor model | IMX178 |
| Model | RC |
| Resolution | 3072 × 2048 |
| Sensor size | 1/1.8" |
| Sensor type | CMOS, rolling shutter |
| SNR | 41.3 dB |
