MV-CS028-10UM

mv-cs028-10um

Area Scan Camera

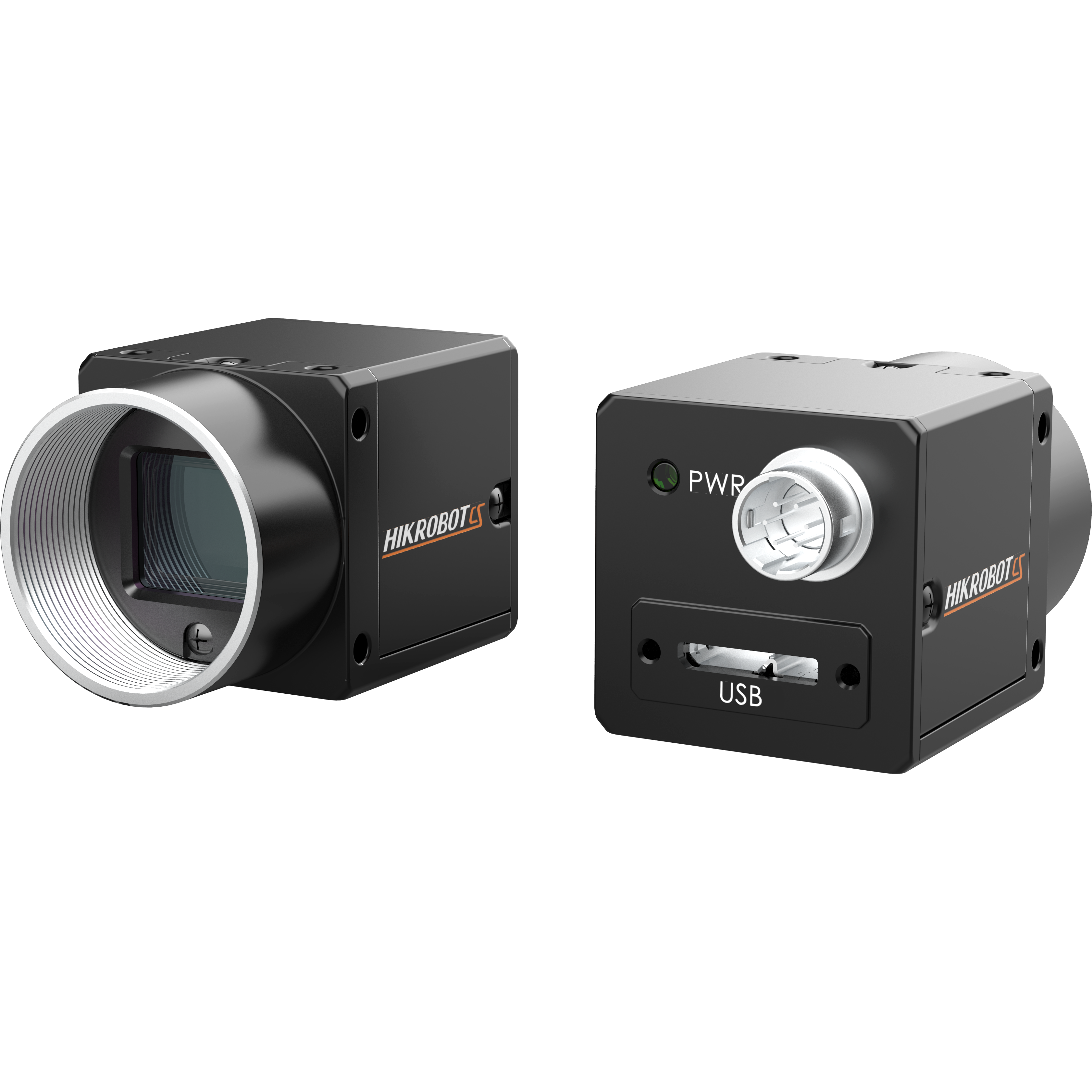

The Hikrobot MV-CS028-10UM (CS-series) is an area-scan camera with global shutter at 1936 × 1464. Sensor format 2/3", pixel size 4.5 μm × 4.5 μm. Sensor options: Sony® IMX421. Frame rate per datasheet up to 132.2 fps @ 1936 × 1464. Interface: USB3.0, compatible with USB2.0. Lens mount: C-mount. Mono build for maximum luminance resolution and contrast.

Select variant

SKU: mv-cs028-10um

Specifications

BinningSupports 1 × 1, 2 × 2
CertificationCE, RoHS, KC
Client softwareMVS or third-party software meeting with USB3.0 Vision Protocol
CompatibilityUSB3 Vision, GenICam
Data interfaceUSB3.0, compatible with USB2.0
DecimationSupports 1 × 1, 2 × 2
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Dynamic range71.1 dB
Exposure modeOff/Once/Continuous exposure mode
Exposure timeUltraShort exposure mode: 1 μs to 5 μs Standard exposure mode: 9 μs to 10 sec
Gain0 dB to 24 dB
Humidity20% to 95% RH, non-condensing
Ingress protectionIP40 (under proper lens installation and wiring)
Lens mountC-mount
Max. frame rate132.2 fps @ 1936 × 1464
Mono/colorMono
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Pixel formatMono 8/10/10Packed/12/12Packed
Pixel size4.5 μm × 4.5 μm
Power consumptionTyp. 2.8 W@ 5 VDC (USB3.0 provides power supply)
Power supply9 VDC to 24 VDC, supports USB3.0 power supply
Resolution1936 × 1464
Reverse imageSupports horizontal and vertical reverse image output
Sensor modelSony® IMX421
Sensor size2/3"
Sensor typeCMOS, global shutter
SNR43.6 dB
TemperatureWorking temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
WeightApprox. 80 g (0.18 lb.)
