MV-CS023-10GC

Color

mv-cs023-10gc

Area Scan Camera

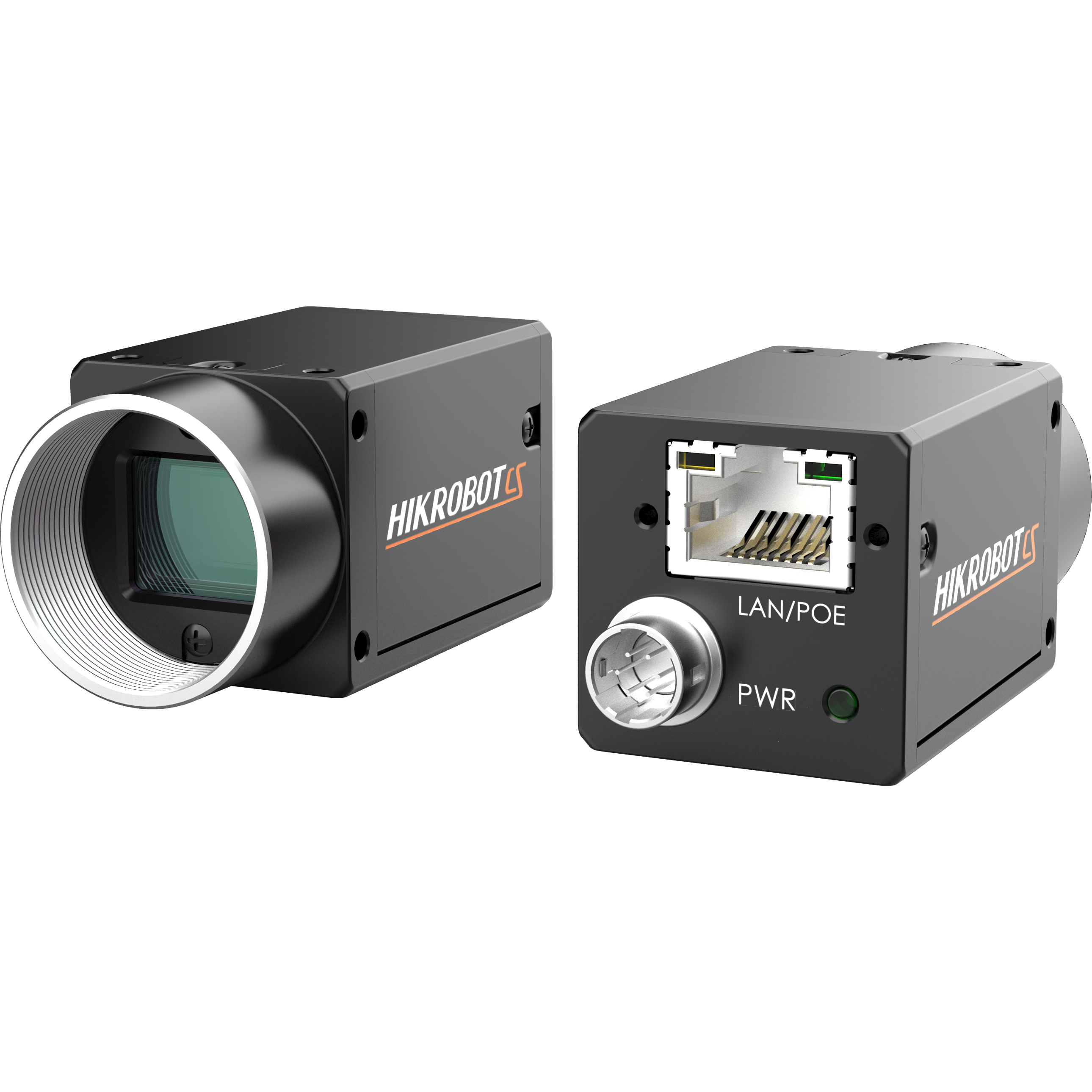

The Hikrobot MV-CS023-10GC (CS-series) is an area-scan camera with global shutter at 1920 × 1200. Sensor format 1/1.2", pixel size 5.86 μm × 5.86 μm. Sensor options: Sony® IMX249. Interface: Gigabit Ethernet, compatible with Fast Ethernet. Lens mount: C-mount. Bayer/color when chromatic information is required; mono when contrast, metrology, or codes under controlled lighting dominate.
Beschikbare configuraties
  • mv-cs023-10gc — Color
  • mv-cs023-10gm — Mono

Select variant

SKU: mv-cs023-10gc

Specifications

BinningSupports 1 × 1, 2 × 2, 4 × 4
CertificationCE, RoHS, KC
Client softwareMVS or third-party software meeting with GigE Vision Protocol
CompatibilityGigE Vision V2.0, GenICam
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
Dynamic range72.6 dB
Exposure modeOff/Once/Continuous exposure mode
Exposure time15 μs to 10 sec
Gain0 dB to 24 dB
Humidity20% to 95% RH, non-condensing
Ingress protectionIP40 (under proper lens installation and wiring)
Lens mountC-mount
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Mono/colorColor
Pixel size5.86 μm × 5.86 μm
Power supply9 VDC to 24 VDC, supports PoE
Resolution1920 × 1200
Reverse imageSupports horizontal and vertical reverse image output
Sensor modelSony® IMX249
Sensor size1/1.2"
Sensor typeCMOS, global shutter
SNR44.9 dB
TemperatureWorking temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
WeightApprox. 100 g (0.22 lb.)
