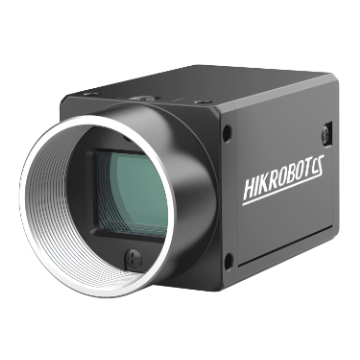

MV-CS004-10GC

Color · Sony® IMX297 · 125.2 fps @ 720 × 540

mv-cs004-10gc

Area Scan Camera

The Hikrobot MV-CS004-10GC (CS-series) is an area-scan camera with global shutter at 720 × 540. Sensor format 1/2.9", pixel size 6.9 μm × 6.9 μm. Sensor options: Sony® IMX297 or Sony® IMX287. Frame rate depends on the selected pixel mode (e.g. 125.2 fps @ 720 × 540). Available with GigE and USB3 interfaces. Lens mount: C-mount. GigE variants (GC/GM) for longer cable runs and multi-camera networks; USB3 (UC/UM) for short host links. Bayer/color when chromatic information is required; mono when contrast, metrology, or codes under controlled lighting dominate. Sensor choice (Sony® IMX297 or Sony® IMX287): size to FOV, pixels-on-feature, and available optics.
Beschikbare configuraties
  • mv-cs004-10gc — Color · Sony® IMX297 · 125.2 fps @ 720 × 540
  • mv-cs004-10gm — Mono · Sony® IMX297 · 125.2 fps @ 720 × 540
  • mv-cs004-10uc — Color · Sony® IMX287 · 526.5 fps @ 720 × 540 Bayer RG 8
  • mv-cs004-10um — Mono · Sony® IMX287 · 526.5 fps @ 720 × 540 Mono 8
  • mv-cs004-11gc — Color · Sony® IMX287 · 312.9 fps @ 720 × 540 Bayer RG 8
  • mv-cs004-11gm — Mono · Sony® IMX287 · 312.9 fps @ 720 × 540 Mono 8

Select variant

SKU: mv-cs004-10gc

Specifications

CertificationCE, RoHS, KC
Exposure modeOff/Once/Continuous exposure mode
Gain0 dB to 24 dB
Humidity20% to 95% RH, non-condensing
Ingress protectionIP40 (under proper lens installation and wiring)
Lens mountC-mount
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Max. frame rate125.2 fps @ 720 × 540
Mono/colorColor
Sensor modelSony® IMX297
Pixel size6.9 μm × 6.9 μm
Resolution720 × 540
Reverse imageSupports horizontal and vertical reverse image output
Sensor size1/2.9"
Sensor typeCMOS, global shutter
TemperatureWorking temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
