MV-CH310-10GC-F-NF
Color · 3.9 fps @ 6464 × 4852 Bayer RG 8 · Gigabit Ethernet, compatible with Fast Ethernet · 10GC-F-NF
mv-ch310-10gc-f-nf
Area Scan Camera

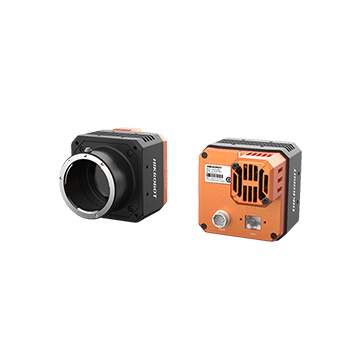

The Hikrobot MV-CH310-10GC-F-NF (CH-series) is an area-scan camera with global shutter at 6464 × 4852. Sensor format 22.3 mm × 16.7 mm, pixel size 3.45 μm × 3.45 μm.
Sensor options: Sony® IMX342. Frame rate depends on the selected pixel mode (e.g. 3.9 fps @ 6464 × 4852 Bayer RG 8). High-bandwidth interface (10GigE-class depending on variant).
Bayer/color when chromatic information is required; mono when contrast, metrology, or codes under controlled lighting dominate.
Beschikbare configuraties
- mv-ch310-10gc-f-nf — Color · 3.9 fps @ 6464 × 4852 Bayer RG 8 · Gigabit Ethernet, compatible with Fast Ethernet · 10GC-F-NF
- mv-ch310-10gm-f-nf — Mono · 3.9 fps @ 6464 × 4852 Mono 8 · Gigabit Ethernet, compatible with Fast Ethernet · 10GM-F-NF
- mv-ch310-10gc-m58s-nf — Color · 3.9 fps @ 6464 × 4852 Bayer RG 8 · Gigabit Ethernet, compatible with Fast Ethernet · 10GC-M58S-NF
- mv-ch310-10gm-m58s-nf — Mono · 3.9 fps @ 6464 × 4852 Mono 8 · Gigabit Ethernet, compatible with Fast Ethernet · 10GM-M58S-NF
- mv-ch310-10tc-m58s-nn — Color · 17.2 fps @ 6464 × 4852 Bayer RG 8 · 10 Gigabit Ethernet, compatible with Gigabit Ethernet · 10TC-M58S-NN
- mv-ch310-10tm-m58s-nn — Mono · 17.2 fps @ 6464 × 4852 Mono 8 · 10 Gigabit Ethernet, compatible with Gigabit Ethernet · 10TM-M58S-NN
Select variant
SKU: mv-ch310-10gc-f-nf
Specifications
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
|---|---|
| Dynamic range | 73 dB |
| Exposure mode | Off/Once/Continuous exposure mode |
| Gain | 0 dB to 24 dB |
| Humidity | 20% to 95% RH, non-condensing |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Max. frame rate | 3.9 fps @ 6464 × 4852 Bayer RG 8 |
| Mono/color | Color |
| Model | 10GC-F-NF |
| Pixel size | 3.45 μm × 3.45 μm |
| Power supply | 9 VDC to 24 VDC |
| Resolution | 6464 × 4852 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Sensor model | Sony® IMX342 |
| Sensor size | 22.3 mm × 16.7 mm |
| Sensor type | CMOS, global shutter |
| SNR | 40 dB |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
