MV-CH240-10TM-C-NN

mv-ch240-10tm-c-nn

Area Scan Camera

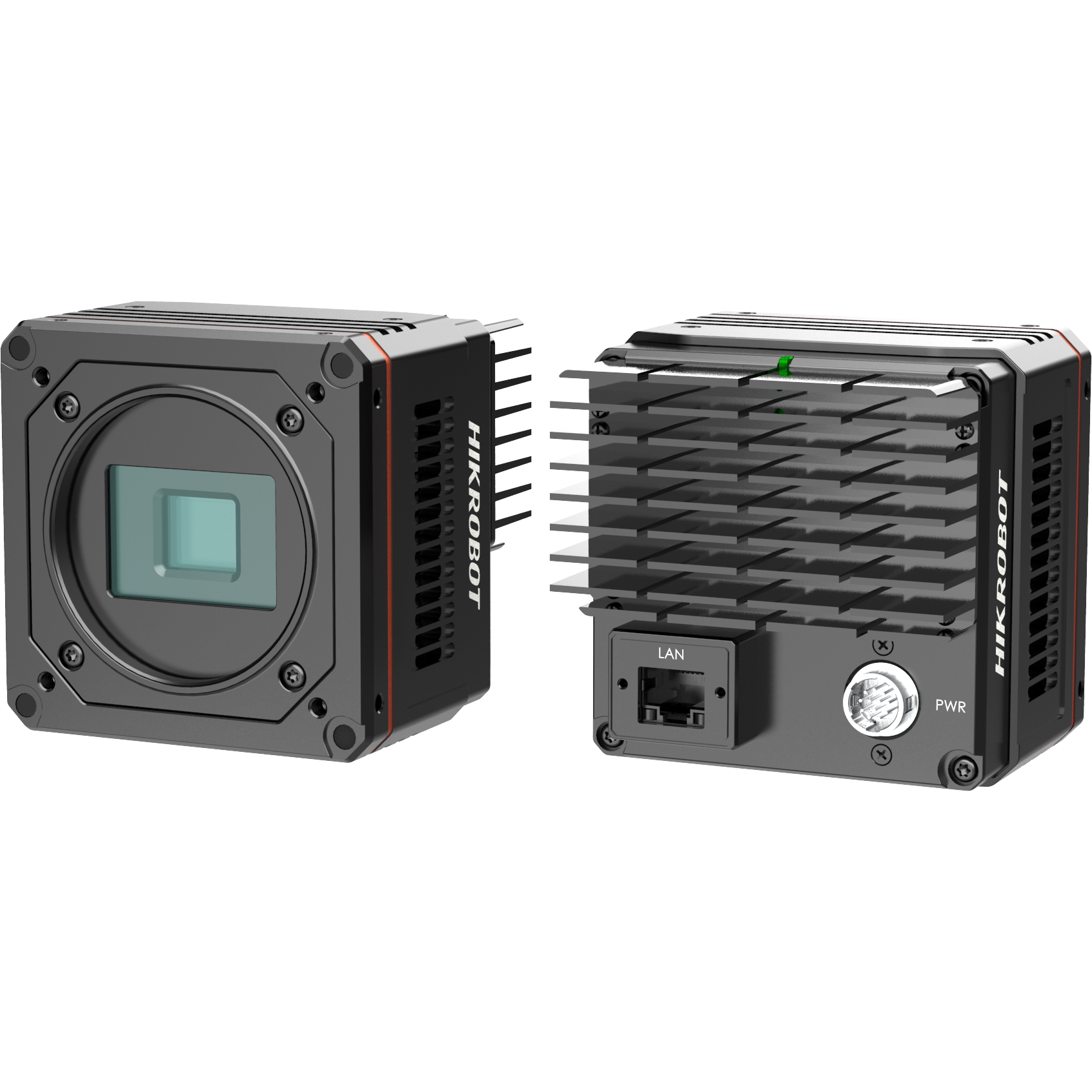

The Hikrobot MV-CH240-10TM-C-NN (CH-series) is an area-scan camera with global shutter at 5328 × 4600. Sensor format 1.2", pixel size 2.74 μm × 2.74 μm. Sensor options: Sony® IMX540. Frame rate per datasheet up to 35.1 fps @ 5328 × 4600. Interface: 10 Gigabit Ethernet, compatible with Gigabit Ethernet. Lens mount: C-mount. Mono build for maximum luminance resolution and contrast.

Select variant

SKU: mv-ch240-10tm-c-nn

Specifications

BinningSupports 1 × 1, 2 × 2
CertificationCE, RoHS, KC
Client softwareMVS or third-party software meeting with GigE Vision Protocol
CompatibilityGigE Vision V2.0, GenICam
Data interface10 Gigabit Ethernet, compatible with Gigabit Ethernet
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Dimension84 mm × 84 mm × 62.5 mm (3.3" × 3.3" × 2.5")
Dynamic range71 dB
Exposure modeOff/Once/Continuous exposure mode
Exposure timeUltraShort exposure mode: 1 μs to 7 μs Standard exposure mode: 8 μs to 10 sec
Gain0 dB to 24 dB
Humidity20% to 95% RH, non-condensing
Ingress protectionIP40 (under proper lens installation and wiring)
Lens mountC-mount
Max. frame rate35.1 fps @ 5328 × 4600
Mono/colorMono
Operating system32/64-bit Windows 7/10
Pixel formatMono 8/10/10Packed/12/12Packed
Pixel size2.74 μm × 2.74 μm
Power consumptionTyp. 10 W@ 12 VDC
Power supply9 VDC to 24 VDC
Resolution5328 × 4600
Reverse imageSupports horizontal and vertical reverse image output
Sensor modelSony® IMX540
Sensor size1.2"
Sensor typeCMOS, global shutter
SNR40 dB
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Weight< 600 g (1.3 lb)
