MV-CH160-60GM

mv-ch160-60gm

Area Scan Camera

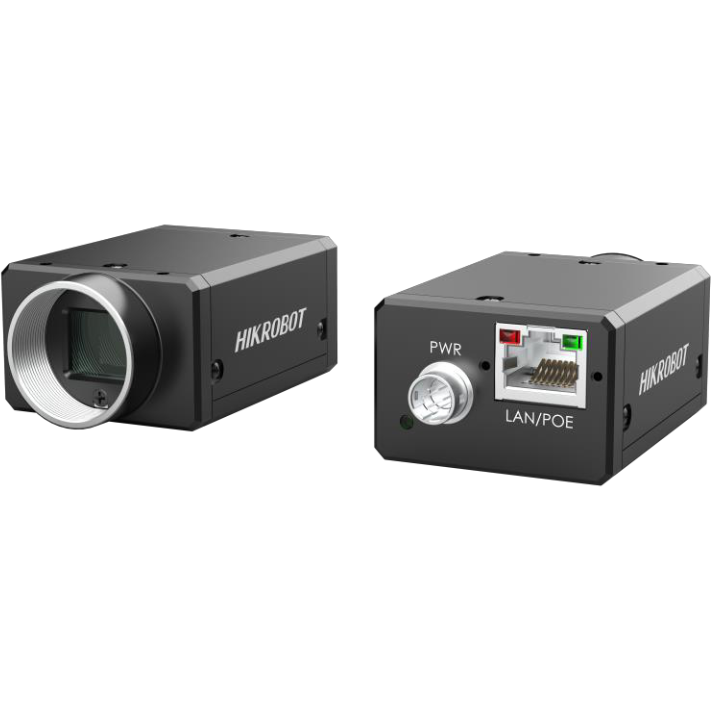

The Hikrobot MV-CH160-60GM (CH-series) is an area-scan camera with global shutter at 4000 × 4000. Sensor format 1.1", pixel size 3.2 μm × 3.2 μm. Sensor options: HK (OEM). Frame rate per datasheet up to 7.25 fps @ 4000 × 4000 Mono 8. Interface: Gigabit Ethernet, compatible with Fast Ethernet. Lens mount: C-mount. Mono build for maximum luminance resolution and contrast.

Select variant

SKU: mv-ch160-60gm

Specifications

BinningSupports 1 × 1, 2 × 2, 4 × 4
CertificationCE, RoHS, KC
Client softwareMVS or third-party software meeting with GigE Vision Protocol
CompatibilityGigE Vision V2.0, GenICam
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Dimension29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Dynamic range65 dB
Exposure modeOff/Once/Continuous exposure mode
Exposure time12 μs to 10 sec
Gain6 dB to 14 dB
Humidity20% to 80% RH, non-condensing
Ingress protectionIP30 (under proper lens installation and wiring)
Lens mountC-mount
Max. frame rate7.25 fps @ 4000 × 4000 Mono 8
Mono/colorMono
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Pixel formatMono 8/10/12
Pixel size3.2 μm × 3.2 μm
Power consumptionTyp. 3.72 W@ 12 VDC
Power supply9 VDC to 26 VDC, supports PoE
Resolution4000 × 4000
Reverse imageSupports horizontal and vertical reverse image output
Sensor modelHK (OEM)
Sensor size1.1"
Sensor typeCMOS, global shutter
SNR38 dB
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
WeightApprox. 100 g (0.2 lb.)
