MV-CH1010-10CM-M72-NF
90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8")
mv-ch1010-10cm-m72-nf
Area Scan Camera

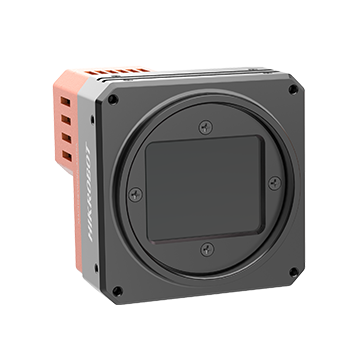

The Hikrobot MV-CH1010-10CM-M72-NF (CH-series) is an area-scan camera with rolling shutter at 11648 × 8740. Sensor format 55 mm, pixel size 3.76 μm × 3.76 μm.
Sensor options: Sony® IMX461. Frame rate per datasheet up to 8.1 fps @ 11648 × 8740 Mono 8. Interface: Camera Link with SDR interface. Lens mount: M72*0.75, flange focal length 19.55 mm.
Mono build for maximum luminance resolution and contrast. Rolling shutter: with motion during exposure plan strobe or stop-motion, or accept geometric skew.
Beschikbare configuraties
- mv-ch1010-10cm-m72-nf — 90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8")
- mv-ch1010-10cm-m72-tf — 100 mm × 100 mm × 87.2 mm (3.9" × 3.9" × 3.4")
Select variant
SKU: mv-ch1010-10cm-m72-nf
Specifications
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
|---|---|
| Certification | CE, RoHS, KC |
| Client software | MVS or frame grabber software meeting with GenICam Protocol |
| Compatibility | Camera Link V2.0, GenICam |
| Configuration mode | Base, Medium, Full, 80-bit |
| Data interface | Camera Link with SDR interface |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. Camera Link interface provides I/O (CC1/CC2/CC3/CC4) |
| Dynamic range | 78 dB |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset |
| Exposure time | 14 μs to 10 sec |
| Gain | 0 dB to 36 dB |
| Humidity | 20% RH to 95% RH (no condensation) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Lens mount | M72*0.75, flange focal length 19.55 mm |
| Max. frame rate | 8.1 fps @ 11648 × 8740 Mono 8 |
| Mono/color | Mono |
| Operating system | 32/64-bit Windows 7/10/11 |
| Dimension | 90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8") |
| Pixel clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz |
| Pixel format | ADC 12-bit mode: Mono 8/10/12 ADC 16-bit mode: Mono 8/10/12/16 |
| Pixel size | 3.76 μm × 3.76 μm |
| Resolution | 11648 × 8740 |
| Reverse image | Supports horizontal reverse image output |
| Sensor model | Sony® IMX461 |
| Sensor size | 55 mm |
| Sensor type | CMOS, rolling shutter |
| SNR | 45 dB |
| Tap geometry | 2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
