MV-CH100-60GC

11.6 fps @ 4096 × 2460 Bayer GR 8

mv-ch100-60gc

Area Scan Camera

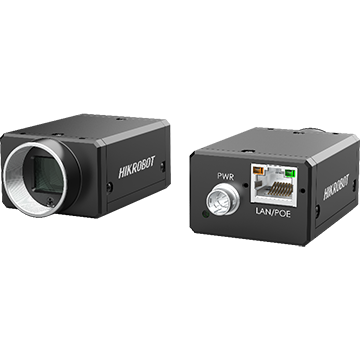

The Hikrobot MV-CH100-60GC (CH-series) is an area-scan camera with global shutter at 4096 × 2460. Sensor format 1", pixel size 3.45 μm × 3.45 μm. Sensor options: Stacked BSI. Frame rate depends on the selected pixel mode (e.g. 11.6 fps @ 4096 × 2460 Bayer GR 8). Available with GigE and USB3 interfaces. Lens mount: C-mount. GigE variants (GC/GM) for longer cable runs and multi-camera networks; USB3 (UC/UM) for short host links. Bayer/color when chromatic information is required; mono when contrast, metrology, or codes under controlled lighting dominate.
Beschikbare configuraties
  • mv-ch100-60gc — 11.6 fps @ 4096 × 2460 Bayer GR 8
  • mv-ch100-60gm — 11.6 fps @ 4096 × 2460 Mono 8
  • mv-ch100-60uc — 36 fps @ 4096 × 2460 Bayer GR 8
  • mv-ch100-60um — 36 fps @ 4096 × 2460 Mono 8

Select variant

SKU: mv-ch100-60gc

Specifications

BinningSupports 1 × 1, 2 × 2, 4 × 4
CertificationCE, RoHS, KC
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Dimension29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Dynamic range58.2 dB
Exposure modeOff/Once/Continuous exposure mode
Exposure time80 μs to 10 sec
Gain0 dB to 24 dB
Humidity20% to 95% RH, non-condensing
Ingress protectionIP40 (under proper lens installation and wiring)
Lens mountC-mount
Max. frame rate11.6 fps @ 4096 × 2460 Bayer GR 8
Pixel size3.45 μm × 3.45 μm
Resolution4096 × 2460
Reverse imageSupports horizontal and vertical reverse image output
Sensor modelStacked BSI
Sensor size1"
Sensor typeCMOS, global shutter
SNR43 dB
TemperatureWorking temperature: -10 °C to 50 °C (14 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
