MV-CE200-10GM
5.9 fps @ 5472 × 3648 · Gigabit Ethernet, compatible with Fast Ethernet · CE, RoHS, KC · 10GM
mv-ce200-10gm
Area Scan Camera

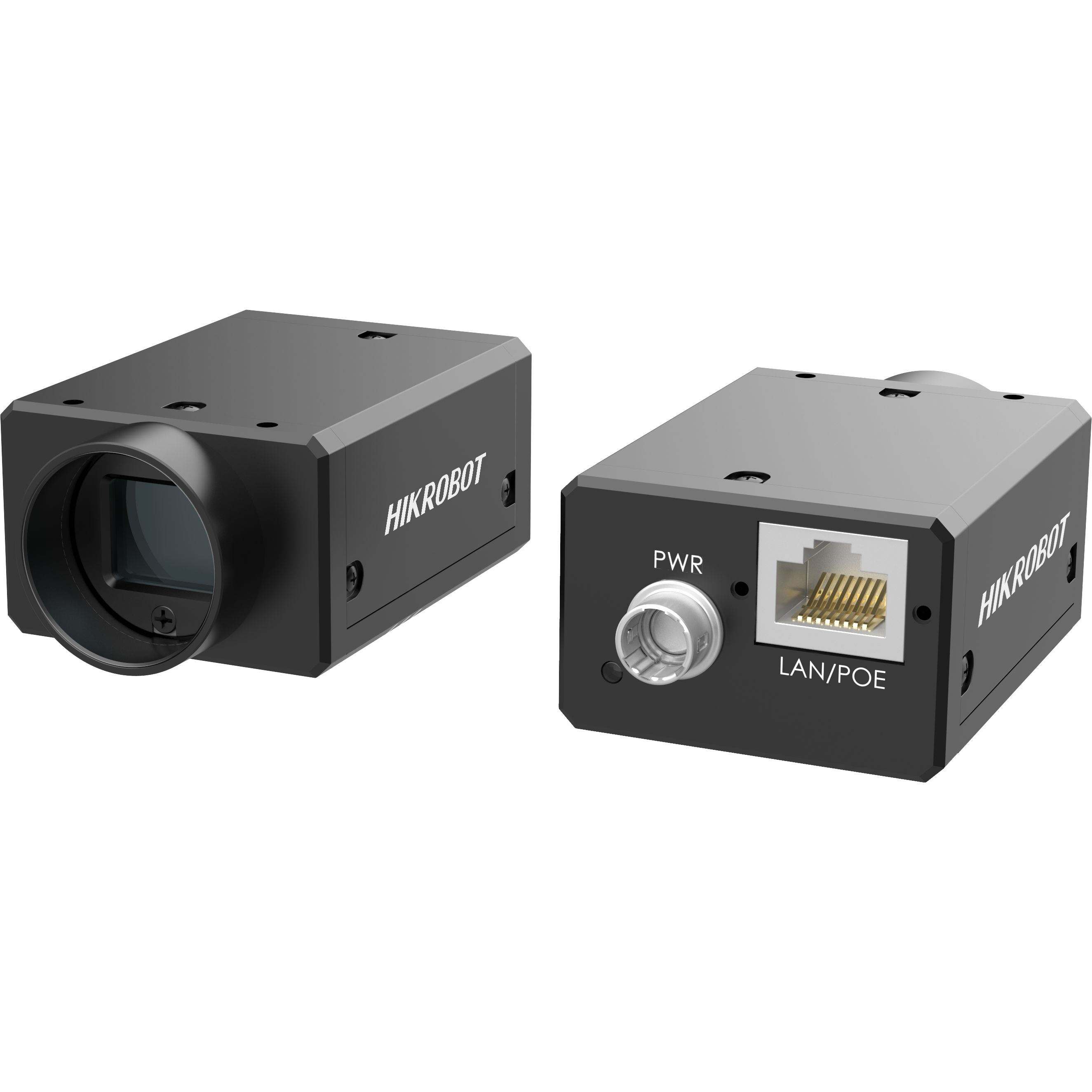

The Hikrobot MV-CE200-10GM (CE-series) is an area-scan camera with rolling shutter at 5472 × 3648. Sensor format 1", pixel size 2.4 μm × 2.4 μm.
Sensor options: Sony® IMX183. Frame rate depends on the selected pixel mode (e.g. 5.9 fps @ 5472 × 3648). Available with GigE and USB3 interfaces. Lens mount: C-mount.
GigE variants (GC/GM) for longer cable runs and multi-camera networks; USB3 (UC/UM) for short host links. Mono build for maximum luminance resolution and contrast. Rolling shutter: with motion during exposure plan strobe or stop-motion, or accept geometric skew.
Beschikbare configuraties
- mv-ce200-10gm — 5.9 fps @ 5472 × 3648 · Gigabit Ethernet, compatible with Fast Ethernet · CE, RoHS, KC · 10GM
- mv-ce200-10um — 19.2 fps @ 5472 × 3648 · USB3.0, compatible with USB2.0 · CE, FCC, RoHS, KC · 10UM
- mv-ce200-11um — 19.2 fps @ 5472 × 3648 · USB3.0, compatible with USB2.0 · CE, FCC, RoHS, KC · 11UM
Select variant
SKU: mv-ce200-10gm
Specifications
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
|---|---|
| Dynamic range | 65.5 dB |
| Gain | 0 dB to 20 dB |
| Humidity | 20% to 80% RH, non-condensing |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Lens mount | C-mount |
| Mono/color | Mono |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Certification | CE, RoHS, KC |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Max. frame rate | 5.9 fps @ 5472 × 3648 |
| Model | 10GM |
| Pixel size | 2.4 μm × 2.4 μm |
| Resolution | 5472 × 3648 |
| Reverse image | Supports horizontal reverse image output |
| Sensor model | Sony® IMX183 |
| Sensor size | 1" |
| Sensor type | CMOS, rolling shutter |
| SNR | 41.5 dB |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
