MV-CE050-30UC
44.7 fps @ 2592 × 1944
mv-ce050-30uc
Area Scan Camera

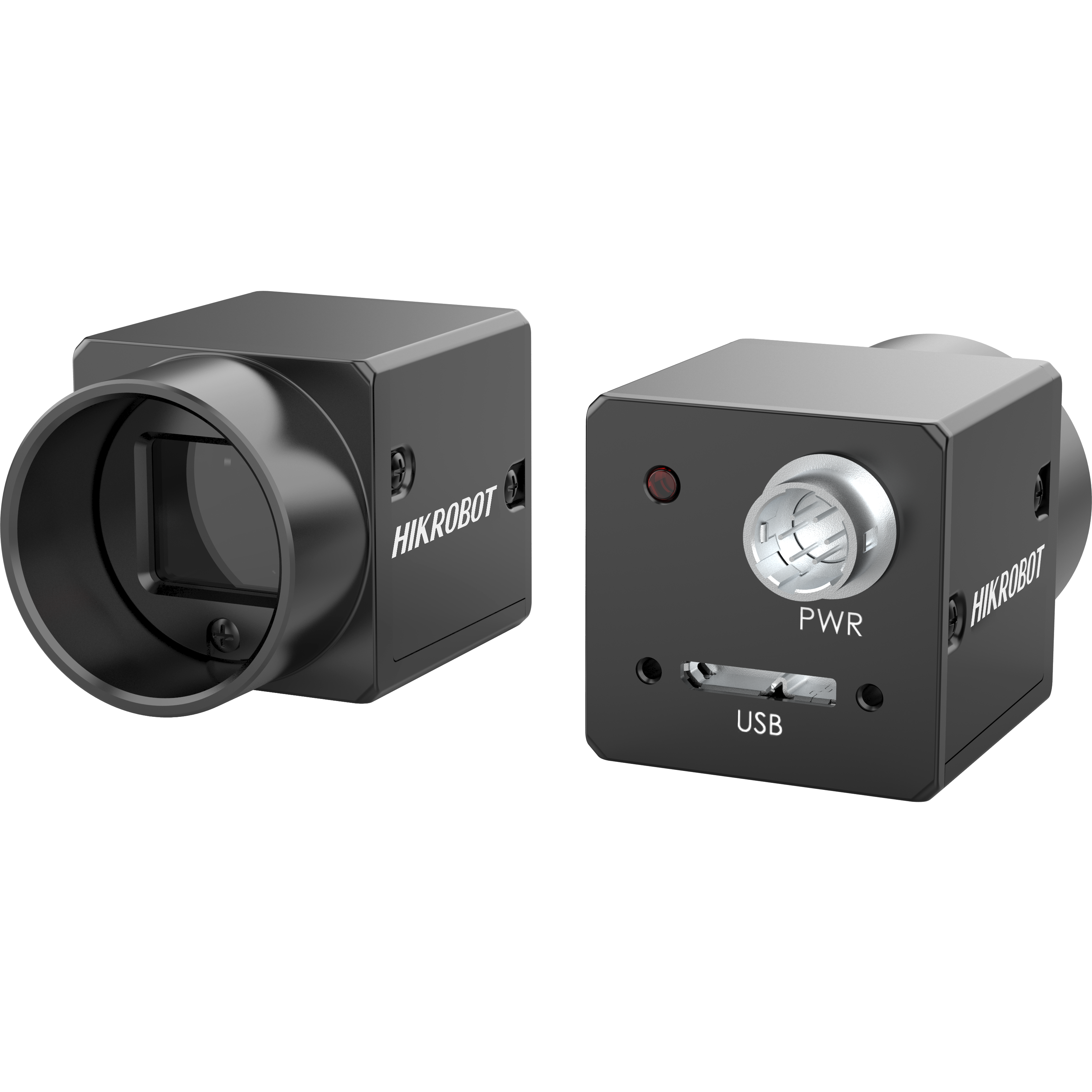

The Hikrobot MV-CE050-30UC (CE-series) is an area-scan camera with rolling shutter at 2592 × 1944. Sensor format 1/2.5", pixel size 2.2 μm × 2.2 μm.
Sensor options: Aptina AR0521. Frame rate depends on the selected pixel mode (e.g. 44.7 fps @ 2592 × 1944). Available with GigE and USB3 interfaces. Lens mount: C-mount.
GigE variants (GC/GM) for longer cable runs and multi-camera networks; USB3 (UC/UM) for short host links. Color/Bayer build for tasks where hue or print matters. Rolling shutter: with motion during exposure plan strobe or stop-motion, or accept geometric skew.
Beschikbare configuraties
- mv-ce050-30uc — 44.7 fps @ 2592 × 1944
- mv-ce050-31gc — 24 fps @ 2592 × 1944
Select variant
SKU: mv-ce050-30uc
Specifications
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
|---|---|
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Exposure mode | Off/Once/Continuous exposure mode |
| Humidity | 20% to 80% RH, non-condensing |
| Image buffer | 128 MB |
| Lens mount | C-mount |
| Mono/color | Color |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Max. frame rate | 44.7 fps @ 2592 × 1944 |
| Pixel size | 2.2 μm × 2.2 μm |
| Resolution | 2592 × 1944 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Sensor model | Aptina AR0521 |
| Sensor size | 1/2.5" |
| Sensor type | CMOS, rolling shutter |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
