MV-CB060-10GC-S
Gigabit Ethernet, compatible with Fast Ethernet · M12-mount · CE, FCC, RoHS, KC · 10GC-S
mv-cb060-10gc-s
Area Scan Camera

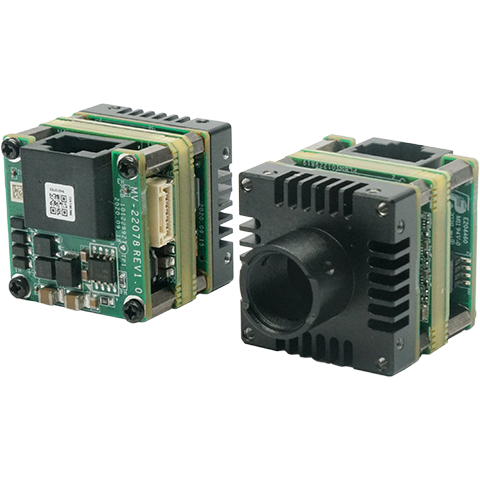

The Hikrobot MV-CB060-10GC-S (CB board-level) is an area-scan camera with rolling shutter at 3072 × 2048. Sensor format 1/1.8", pixel size 2.4 μm × 2.4 μm.
Sensor options: Sony® IMX178. Available with GigE and USB3 interfaces.
GigE variants (GC/GM) for longer cable runs and multi-camera networks; USB3 (UC/UM) for short host links. Bayer/color when chromatic information is required; mono when contrast, metrology, or codes under controlled lighting dominate. Rolling shutter: with motion during exposure plan strobe or stop-motion, or accept geometric skew.
Beschikbare configuraties
- mv-cb060-10gc-s — Gigabit Ethernet, compatible with Fast Ethernet · M12-mount · CE, FCC, RoHS, KC · 10GC-S
- mv-cb060-10gm-s — Gigabit Ethernet, compatible with Fast Ethernet · M12-mount · CE, FCC, RoHS, KC · 10GM-S
- mv-cb060-10uc-b — USB3.0 · None · CE, RoHS, KC · 10UC-B
- mv-cb060-10uc-c — USB3.0 · C-mount · CE, RoHS, KC · 10UC-C
- mv-cb060-10uc-s — USB3.0 · M12-mount · CE, RoHS, KC · 10UC-S
- mv-cb060-10um-b — USB3.0 · None · CE, RoHS, KC · 10UM-B
- mv-cb060-10um-c — USB3.0 · C-mount · CE, RoHS, KC · 10UM-C
- mv-cb060-10um-s — USB3.0 · M12-mount · CE, RoHS, KC · 10UM-S
Select variant
SKU: mv-cb060-10gc-s
Specifications
| Binning | Supports 1 × 1, 2 × 2 |
|---|---|
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Gain | 0 dB to 24 dB |
| Humidity | 20% to 80% RH, non-condensing |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Certification | CE, FCC, RoHS, KC |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Lens mount | M12-mount |
| Model | 10GC-S |
| Pixel size | 2.4 μm × 2.4 μm |
| Resolution | 3072 × 2048 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Sensor model | Sony® IMX178 |
| Sensor size | 1/1.8" |
| Sensor type | CMOS, rolling shutter |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
