MV-CB016-10GC-C
Not specified · Sony® IMX296 · Gigabit Ethernet, compatible with Fast Ethernet · 10GC-C
mv-cb016-10gc-c
Area Scan Camera

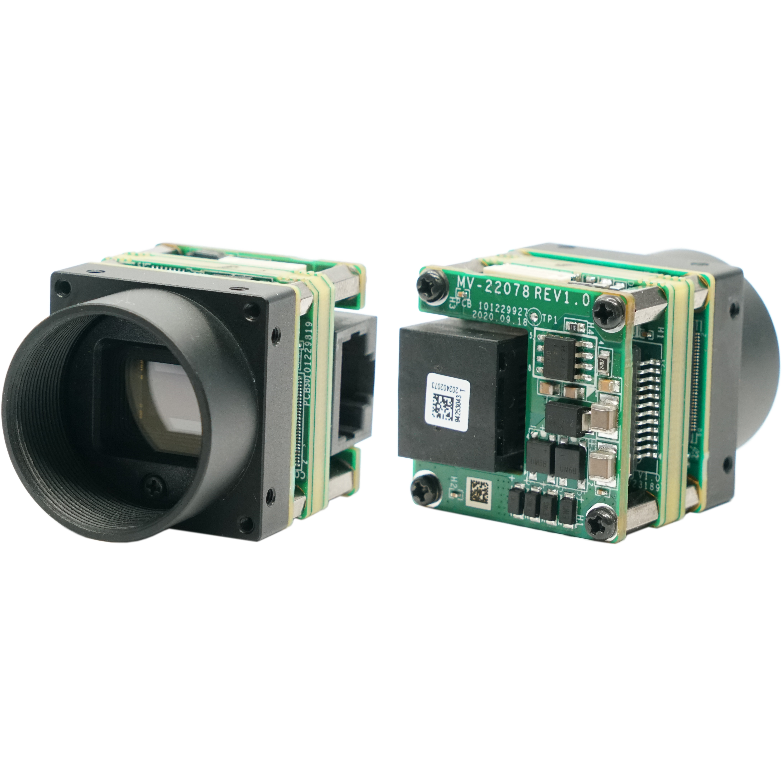

The Hikrobot MV-CB016-10GC-C (CB board-level) is an area-scan camera with global shutter at 1440 × 1080. Sensor format 1/2.9", pixel size 3.45 μm × 3.45 μm.
Sensor options: Sony® IMX296 or Sony® IMX273. Available with GigE and USB3 interfaces.
GigE variants (GC/GM) for longer cable runs and multi-camera networks; USB3 (UC/UM) for short host links. Bayer/color when chromatic information is required; mono when contrast, metrology, or codes under controlled lighting dominate. Sensor choice (Sony® IMX296 or Sony® IMX273): size to FOV, pixels-on-feature, and available optics.
Beschikbare configuraties
- mv-cb016-10gc-c — Not specified · Sony® IMX296 · Gigabit Ethernet, compatible with Fast Ethernet · 10GC-C
- mv-cb016-10gm-s — Not specified · Sony® IMX296 · Gigabit Ethernet, compatible with Fast Ethernet · 10GM-S
- mv-cb016-10uc-b — Color · Sony® IMX273 · USB 3.0 · 10UC-B
- mv-cb016-10uc-c — Color · Sony® IMX273 · USB 3.0 · 10UC-C
- mv-cb016-10uc-s — Color · Sony® IMX273 · USB 3.0 · 10UC-S
- mv-cb016-10um-b — Mono · Sony® IMX273 · USB 3.0 · 10UM-B
- mv-cb016-10um-c — Mono · Sony® IMX273 · USB 3.0 · 10UM-C
- mv-cb016-10um-s — Mono · Sony® IMX273 · USB 3.0 · 10UM-S
Select variant
SKU: mv-cb016-10gc-c
Specifications
| Exposure mode | Off/ Once/ Continuous exposure mode |
|---|---|
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Humidity | 20% to 80% RH, non-condensing |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Mono/color | Not specified |
| Sensor model | Sony® IMX296 |
| Model | 10GC-C |
| Pixel size | 3.45 μm × 3.45 μm |
| Resolution | 1440 × 1080 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Sensor size | 1/2.9" |
| Sensor type | CMOS, global shutter |
