MV-SC2004EC-08S-WBN
8 mm
mv-sc2004ec-08s-wbn
Smart Camera

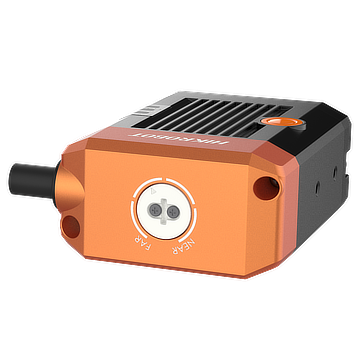

The Hikrobot MV-SC2004EC-08S-WBN (SC smart camera) is a smart camera at 704 × 540, color. CMOS, global shutter (1/2.9").
Max. frame rate 60 fps. Data interface Fast Ethernet (100 Mbit/s). Lens mount M12-mount, adjusting focus manually supported.
On-device vision: tools and decisions on the camera, useful when inspection logic must stay close to the cell without a dedicated PC vision host per station. Color when chromatic separation is part of the acceptance criteria. Illumination per specification: White LED lamp. Digital I/O and network on industrial connectors for trigger, results, and optional lamp drive.
Beschikbare configuraties
- mv-sc2004ec-08s-wbn — 8 mm
- mv-sc2004ec-12s-wbn — 12.4 mm
- mv-sc2004ec-15s-wbn — 14.8 mm
Select variant
SKU: mv-sc2004ec-08s-wbn
Specifications
| Certification | CE, KC |
|---|---|
| Client software | SCMVS |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, ModBus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power, Ethernet, serial port, and digital I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), and RS-232 × 1 |
| Dimension | 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0") |
| Dynamic range | 74 dB |
| Exposure time | 16 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Humidity | 20% RH to 95% RH (no condensation) |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Ingress protection | IP65 (under proper installation of lens and wiring) |
| Lens cap | Transparent lens cap |
| Lens mount | M12-mount, adjusting focus manually supported |
| Light source | White LED lamp |
| Max. frame rate | 60 fps |
| Max. power consumption | Approx. 22 W @ 24 VDC |
| Mono/color | Color |
| Focal length | 8 mm |
| Pixel format | Mono 8, RGB 8 |
| Pixel size | 6.9 μm × 6.9 μm |
| Power supply | 12 VDC to 24 VDC |
| Resolution | 704 × 540 |
| Sensor size | 1/2.9" |
| Sensor type | CMOS, global shutter |
| SNR | 41 dB |
| Solution capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Weight | Approx. 220 g (0.5 lb.) |
