MV-SC1003C-03S-WBN-NR
1 dB to 23 dB · Color · NR
mv-sc1003c-03s-wbn-nr
Smart Camera

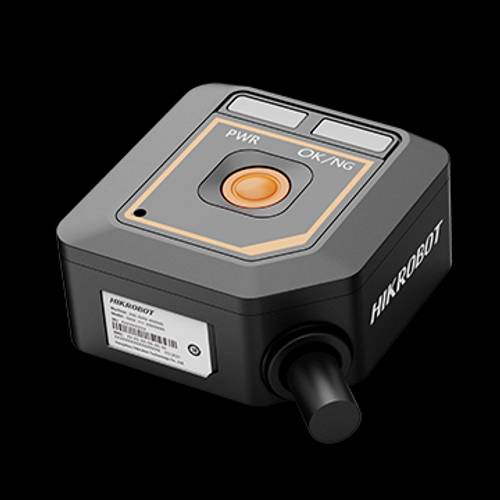

The Hikrobot MV-SC1003C-03S-WBN-NR (SC smart camera) is a smart camera at 640 × 480. CMOS, global shutter (1/6").
Max. frame rate 15 fps. Data interface Fast Ethernet (100 Mbit/s). Lens mount M5.5-mount.
On-device vision: tools and decisions on the camera, useful when inspection logic must stay close to the cell without a dedicated PC vision host per station. Illumination per specification: White LED.
Beschikbare configuraties
- mv-sc1003c-03s-wbn-nr — 1 dB to 23 dB · Color · NR
- mv-sc1003c-03s-wbn-sr — 1 dB to 23 dB · Color · SR
- mv-sc1003m-03s-wbn-nr — 1 dB to 15 dB · Mono · NR
- mv-sc1003m-03s-wbn-sr — 1 dB to 15 dB · Mono · SR
Select variant
SKU: mv-sc1003c-03s-wbn-nr
Specifications
| Aiming system | Orange LED |
|---|---|
| Certification | CE, KC |
| Client software | SCMVS |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Dimension | 38 mm × 38 mm × 19 mm (1.5" × 1.5" × 0.7") |
| Dynamic range | 60 dB |
| Exposure time | 60 μs to 7000 μs |
| Focal length | 3.1 mm |
| Humidity | 20% RH to 95% RH (no condensation) |
| Indicator | Power indicator (PWR), result indicator (OK/NG) |
| Ingress protection | IP54 |
| Lens cap | Transparent lens cap |
| Lens mount | M5.5-mount |
| Light source | White LED |
| Max. frame rate | 15 fps |
| Max. power consumption | Approx. 3 W @ 12 VDC |
| Gain | 1 dB to 23 dB |
| Mono/color | Color |
| I/O suffix | NR |
| Pixel size | 3.74 μm × 3.74 μm |
| Power supply | 12 VDC to 24 VDC |
| Resolution | 640 × 480 |
| Sensor size | 1/6" |
| Sensor type | CMOS, global shutter |
| SNR | 40 dB |
| Solution capacity | Supports solution importing and exporting, and up to 8 solutions and 40 modules can be stored. |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
