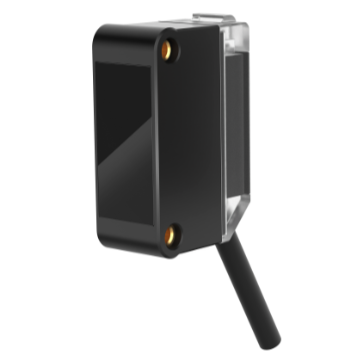

MV-PE5715

mv-pe5715

Vision Components

MV-PE5715 is a Sedeco vision component selected from live catalog data: Infrared laser 905 nm · IP67 · Output: NPN/PNP switch and light-on/dark-on switch · Material: Housing: polycarbonate Lens: acrylic · Indicator: Operation indicator: orange Stability indicator: green. Configure the matching variant for your station; talk to Sedeco for selection support.

Select variant

SKU: mv-pe5715

Specifications

Ambient illuminationSunlight: < 10000 lux Incandescent lamp: < 3000 lux
CertificationCE, RoHS
Circuit protectionReverse polarity protection, overcurrent protection, and overvoltage protection
Connecting methodCable lead-out (standard length: 2 m, 78.7")
Detecting distance50 mm to 5000 mm
Dimension20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2")
Humidity35% RH to 85% RH
IndicatorOperation indicator: orange Stability indicator: green
Ingress protectionIP67
Insulation resistance20 MΩ or more (between the terminal block for power supply and the housing)
Laser safety classClass 1
Light sourceInfrared laser 905 nm
MaterialHousing: polycarbonate Lens: acrylic
Max. sink/source current≤ 100 mA
Method of setting upSingle teach-in button
Operating current≤ 35 mA @ 12V, ≤ 20 mA @ 24V
OutputNPN/PNP switch and light-on/dark-on switch
Residual voltage≤ 2 VDC
Response time500 μs/10 ms switch
Sensing targetStandard reflector (100 mm × 100 mm) with reflectivity of 90%
Shock resistance500 m/s2, 3 times in each of the X, Y, and Z directions
Supply voltage12 VDC to 24 VDC ± 10%
TemperatureWorking temperature: –25 °C to 55 °C (–13 °F to 131 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Vibration resistance10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions
WeightApprox. 45 g (0.1 lb.) (including cable)
Withstand voltage1000 VAC, 1 min (between the terminal block for power supply and the housing)
