MV-LE201-10W5-2D
Serial · DB9F serial port · 24 VDC terminal block · 10W5-2D
mv-le201-10w5-2d
Light Source

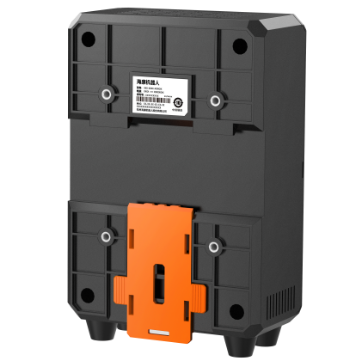

The Hikrobot MV-LE201-10W5-2D is a light controller. Light controller: continuous or strobe drive synchronized to the camera trigger.
Sizes/models include 10W5-2D, 30W5-2FD, 200W48-2TD, 500W48-2TD, or 750W48-2TD. Size to FOV including placement tolerance.
Beschikbare configuraties
- mv-le201-10w5-2d — Serial · DB9F serial port · 24 VDC terminal block · 10W5-2D
- mv-le201-30w5-2fd — Serial · DB9F serial port · 24 VDC terminal block · 30W5-2FD
- mv-le201-200w48-2td — UDP, Serial · RJ45 network interface, DB9F serial port · C13 220 VAC interface · 200W48-2TD
- mv-le201-500w48-2td — UDP, Serial · RJ45 network interface, DB9F serial port · C13 220 VAC interface · 500W48-2TD
- mv-le201-750w48-2td — UDP, Serial · RJ45 network interface, DB9F serial port · C13 220 VAC interface · 750W48-2TD
Select variant
SKU: mv-le201-10w5-2d
Specifications
| Certification | CE, KC |
|---|---|
| Channel | 2-channel |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Communication protocol | Serial |
| Console interface | DB9F serial port |
| Power supply interface | 24 VDC terminal block |
| Model | 10W5-2D |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F) |
| Trigger mode | External trigger and internal trigger |
