MV-LRSS-H-80-W
30~50 mm · ≥14000 Lux@ WD=100 mm · Φ40 mm
mv-lrss-h-80-w
Light Source

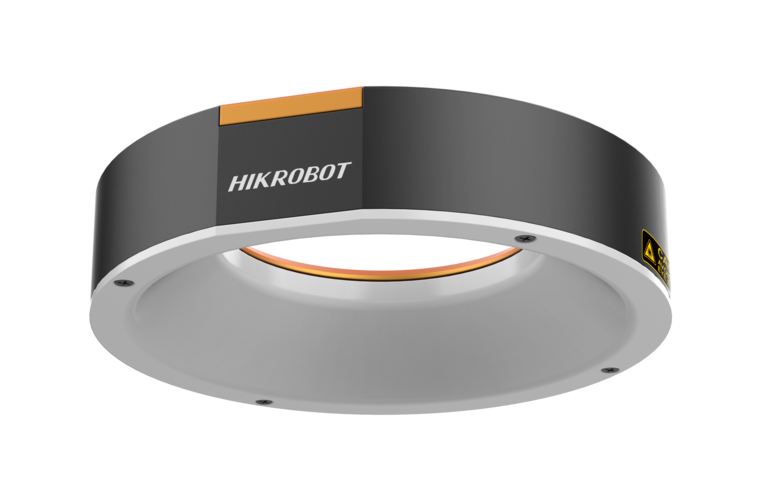

The Hikrobot MV-LRSS-H-80-W is a ring light. Ring geometry: front light around the optical axis; works on diffuse objects, often hotspots on specular surfaces.
Cable 1 m. Diffuser: PMMA.
Beschikbare configuraties
- mv-lrss-h-80-w — 30~50 mm · ≥14000 Lux@ WD=100 mm · Φ40 mm
- mv-lrss-h-120-w — 30~60 mm · ≥15000 Lux@ WD=100 mm · Φ75 mm
- mv-lrss-h-160-w — 30~80 mm · ≥18000 Lux@ WD=100 mm · Φ116 mm
- mv-lrss-h-200-w — 30~80 mm · ≥19000 Lux@ WD=100 mm · Φ148 mm
- mv-lrss-h-250-w — 60~120 mm · ≥20000 Lux@ WD=100 mm · Φ190 mm
- mv-lrss-h-300-w — 60~120 mm · ≥20000 Lux@ WD=100 mm · Φ248 mm
Select variant
SKU: mv-lrss-h-80-w
Specifications
| Cable length | 1 m |
|---|---|
| Color | White |
| Color temperature | 6000 ~ 7000K |
| Connector type | SMR-03V-B |
| Diffuse plate included | PMMA |
| Humidity | 20% RH to 90% RH (no condensation) |
| LED rows | 1 |
| Best working distance | 30~50 mm |
| Bore dimension | Φ40 mm |
| Center illuminance | ≥14000 Lux@ WD=100 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Wavelength | / |
