MV-LCDS-H-30-30-B

/ · Blue · 465 nm · 30-30-B

mv-lcds-h-30-30-b

Light Source

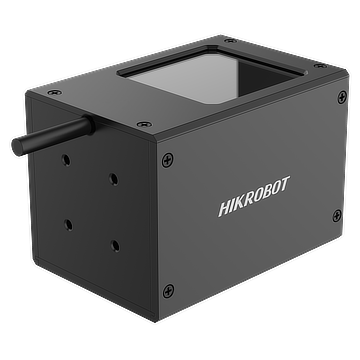

The Hikrobot MV-LCDS-H-30-30-B is a coaxial light. Coaxial: on-axis illumination for flat specular surfaces. Color variants: 6000 ~ 7000K. Wavelength e.g. 465 nm, 625 nm, or 850 nm. Cable 1 m. Diffuser: Included. Sizes/models include 30-30-B, 30-30-R, 30-30-W, 40-40-B, 40-40-R, or 40-40-W (+8). Size to FOV including placement tolerance.
Beschikbare configuraties
  • mv-lcds-h-30-30-b — / · Blue · 465 nm · 30-30-B
  • mv-lcds-h-30-30-r — / · Red · 625 nm · 30-30-R
  • mv-lcds-h-30-30-w — 6000 ~ 7000K · White · / · 30-30-W
  • mv-lcds-h-40-40-b — / · Blue · 465 nm · 40-40-B
  • mv-lcds-h-40-40-r — / · Red · 625 nm · 40-40-R
  • mv-lcds-h-40-40-w — 6000 ~ 7000K · White · / · 40-40-W
  • mv-lcds-h-50-50-b — / · Blue · 465 nm · 50-50-B
  • mv-lcds-h-50-50-r — / · Red · 625 nm · 50-50-R
  • mv-lcds-h-50-50-w — 6000 ~ 7000K · White · / · 50-50-W
  • mv-lcds-h-60-60-b — / · Blue · 465 nm · 60-60-B
  • mv-lcds-h-60-60-r — / · Red · 625 nm · 60-60-R
  • mv-lcds-h-60-60-w — 6000 ~ 7000K · White · / · 60-60-W
  • mv-lcds-h-70-70-w — 6000 ~ 7000K · White · / · 70-70-W
  • mv-lcds-h-70-70-ir850 — / · Infrared · 850 nm · 70-70-IR850

Select variant

SKU: mv-lcds-h-30-30-b

Specifications

Cable length1 m
Connector typeSMR-03V-B
Diffuse plate includedIncluded
Humidity20% RH to 90%RH (no condensation)
ColorBlue
Color temperature/
Model30-30-B
Wavelength465 nm
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Compare products

MV-LCDS-H-30-30-B
mv-lcds-h · mv-lcds-h
