MV-LBES-H-50-50-W
White · 6000 ~ 7000K · / · 50-50-W
mv-lbes-h-50-50-w
Light Source

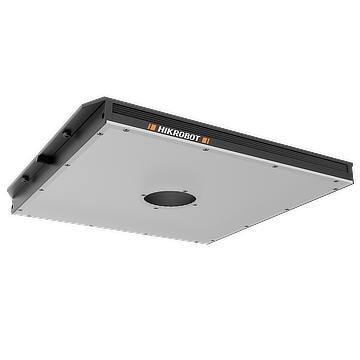

The Hikrobot MV-LBES-H-50-50-W is a backlight. Backlight: silhouette and contour contrast; not for front print or surface texture.
Color variants: White or Red. Wavelength e.g. 625 nm. Cable 1 m. Diffuser: Included.
Sizes/models include 50-50-W, 100-100-W, 120-120-W, 150-150-W, 200-200-W, or 250-150-W (+9). Size to FOV including placement tolerance.
White as a general front/backlight choice; narrow wavelengths (e.g. red) when contrast on specific inks or materials improves under mono capture.
Beschikbare configuraties
- mv-lbes-h-50-50-w — White · 6000 ~ 7000K · / · 50-50-W
- mv-lbes-h-100-100-w — White · 6000 ~ 7000K · / · 100-100-W
- mv-lbes-h-120-120-w — White · 6000 ~ 7000K · / · 120-120-W
- mv-lbes-h-150-150-w — White · 6000 ~ 7000K · / · 150-150-W
- mv-lbes-h-200-200-w — White · 6000 ~ 7000K · / · 200-200-W
- mv-lbes-h-250-150-w — White · 6000 ~ 7000K · / · 250-150-W
- mv-lbes-h-250-200-w — White · 6000 ~ 7000K · / · 250-200-W
- mv-lbes-h-250-250-r — Red · / · 625 nm · 250-250-R
- mv-lbes-h-250-250-w — White · 6000 ~ 7000K · / · 250-250-W
- mv-lbes-h-300-200-w — White · 6000 ~ 7000K · / · 300-200-W
- mv-lbes-h-300-300-w — White · 6000 ~ 7000K · / · 300-300-W
- mv-lbes-h-400-300-w — White · 6000 ~ 7000K · / · 400-300-W
- mv-lbes-h-450-320-w — White · 6000 ~ 7000K · / · 450-320-W
- mv-lbes-h-600-400-w — White · 6000 ~ 7000K · / · 600-400-W
- mv-lbes-h-620-620-w — White · 6000 ~ 7000K · / · 620-620-W
Select variant
SKU: mv-lbes-h-50-50-w
Specifications
| Cable length | 1 m |
|---|---|
| Diffuse plate included | Included |
| Humidity | 20% RH to 90% RH (no condensation) |
| Color | White |
| Color temperature | 6000 ~ 7000K |
| Model | 50-50-W |
| Wavelength | / |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
