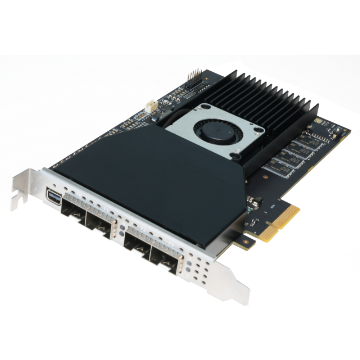

MV-GS1002F V3.0
mv-gs1002f-v3-0
Vision Components
MV-GS1002F V3.0 is a Sedeco vision component selected from live catalog data: 2LC fiber port · MVS software · Stream: 2 at most · Standard: XoFLink · SFP+ module: SFP+ × 2. Configure the matching variant for your station; talk to Sedeco for selection support.
Select variant
SKU: mv-gs1002f-v3-0
Specifications
| Bus indicator | 1 |
|---|---|
| Camera connection speed | 10 Gbps for single port, 20 Gbps in total |
| Camera quantity supported | 1/2 |
| Certification | CE, KC, RoHS |
| Client software | MVS |
| Connector | Connector of I/O on bracket: 20-pin MiniDP female connector Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Data interface | 2LC fiber port |
| Delivery bandwidth | 4000 MB/s (max. transmission bandwidth) 3200 MB/s (sustained transmission bandwidth) |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Humidity | 10% RH to 95% RH (no condensation) |
| Interconnect | PCI-E gen3 × 4 |
| On-board memory | 2 GB DDR4 |
| Operating system | Windows 7/10/11, Ubuntu 16.04 to 22.04 on Linux |
| Power consumption | Typ. 9.8 W |
| SFP+ module | SFP+ × 2 |
| Standard | XoFLink |
| Stream | 2 at most |
| Stream indicator | 2 pairs |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
