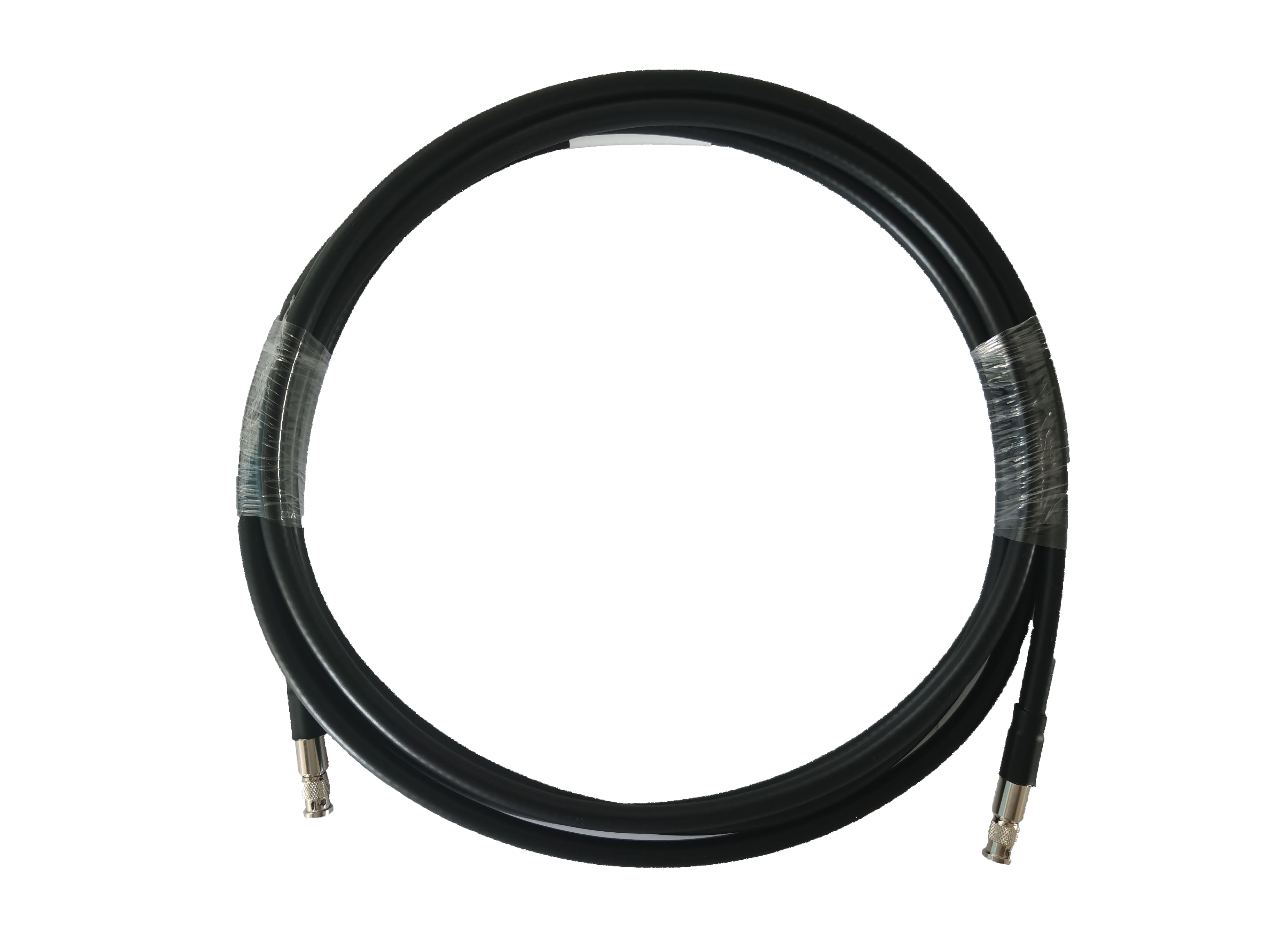

MV-ACXP12-HDBNC-HDBNC-ST-3m
3 m
mv-acxp12-hdbnc-hdbnc-st-3m
Vision Components
MV-ACXP12-HDBNC-HDBNC-ST-3m is a Sedeco vision component selected from live catalog data: Jacket: PVC · Packaging: Individual package · Cable color: Black · Max. voltage: 300 VDC · Cable diameter: 7 mm. Configure the matching variant for your station; talk to Sedeco for selection support.
Beschikbare configuraties
- mv-acxp12-hdbnc-hdbnc-st-3m — 3 m
- mv-acxp12-hdbnc-hdbnc-st-5m — 5 m
- mv-acxp12-hdbnc-hdbnc-st-10m — 10 m
Select variant
SKU: mv-acxp12-hdbnc-hdbnc-st-3m
Specifications
| Applicable scenario | Static scenes |
|---|---|
| Cable color | Black |
| Cable diameter | 7 mm |
| Cable mechanical | Coaxial |
| Certification | UL |
| Connector durability | 500 cycles |
| End A connector | HD-BNC |
| End B connector | HD-BNC |
| Jacket | PVC |
| Max. voltage | 300 VDC |
| Min. bending radius | 84 mm |
| Length | 3 m |
| Packaging | Individual package |
| Working temperature | -20°C~ 80°C |
