MV-ACP-H12p-open-ST-3m
3 m
mv-acp-h12p-open-st-3m
Vision Components

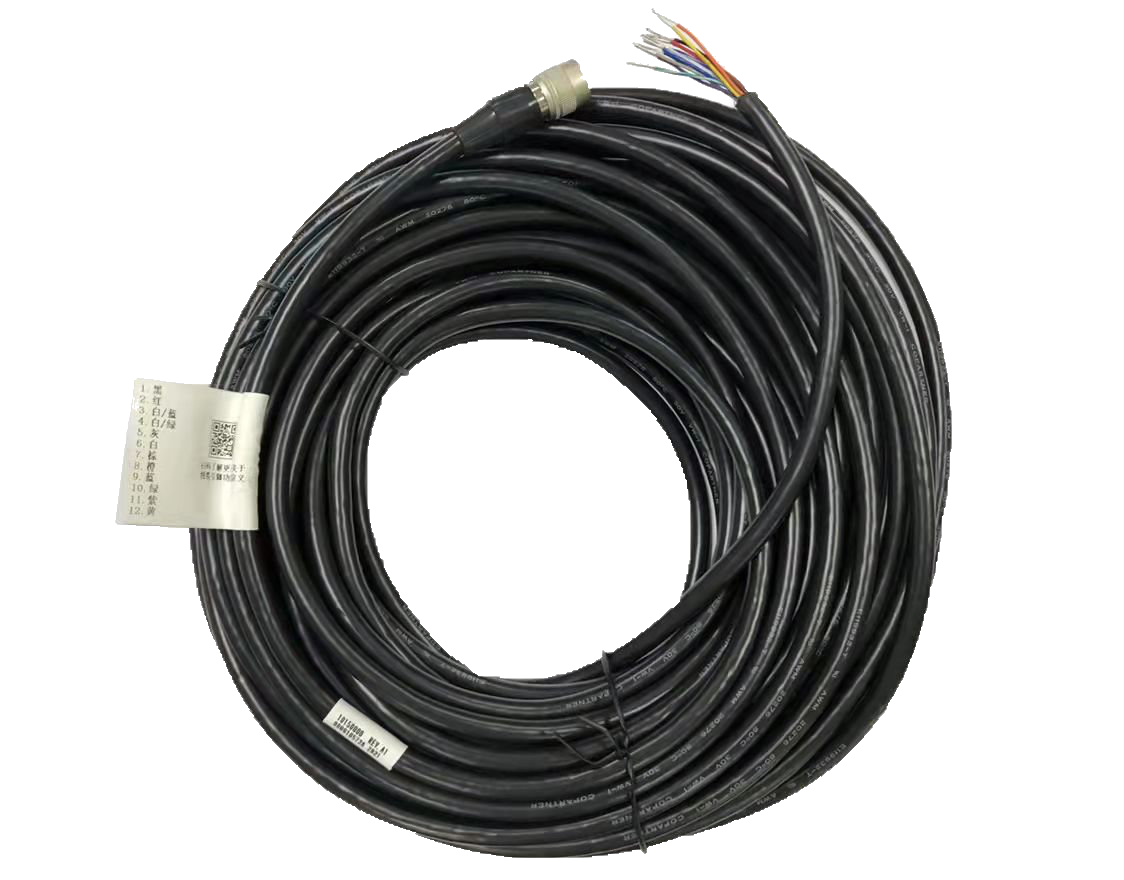

MV-ACP-H12p-open-ST-3m is a Sedeco vision component selected from live catalog data: Jacket: PVC · Packaging: Individual package · Cable color: Black · Max. voltage: 30 VDC · Cable diameter: 7.0 mm. Configure the matching variant for your station; talk to Sedeco for selection support.
Beschikbare configuraties
- mv-acp-h12p-open-st-3m — 3 m
- mv-acp-h12p-open-st-5m — 5 m
- mv-acp-h12p-open-st-7m — 7 m
- mv-acp-h12p-open-st-10m — 10 m
- mv-acp-h12p-open-st-20m — 20 m
Select variant
SKU: mv-acp-h12p-open-st-3m
Specifications
| Applicable scenario | Static scene |
|---|---|
| Cable color | Black |
| Cable diameter | 7.0 mm |
| Cable mechanical | 5P*26AWG+1P*24AWG+B |
| Certification | RoHS2.0,UL |
| Connector durability | ≥ 750 cycles |
| Connector model | made in China |
| End A connector | P10 12-pin,Female |
| End B connector | Open |
| Jacket | PVC |
| Max. voltage | 30 VDC |
| Min. bending radius | 84 mm |
| Length | 3 m |
| Packaging | Individual package |
| Working temperature | -20°C~75°C |
