MV-SC6250M-00C-NNN
mv-sc6250m-00c-nnn
Smart Camera

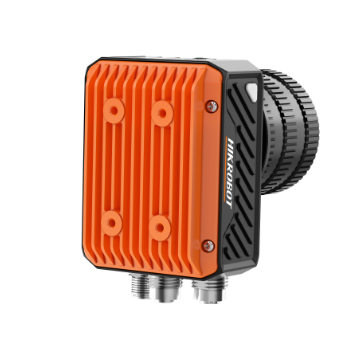

The Hikrobot MV-SC6250M-00C-NNN (SC smart camera) is a smart camera at 5120 × 5120, mono. CMOS, global shutter (1.1").
Max. frame rate 20 fps. Data interface Gigabit Ethernet (1000 Mbit/s). Lens mount C-mount. Runtime/platform: VM Platform. Memory 16 GB. Storage 64 GB.
On-device vision: tools and decisions on the camera, useful when inspection logic must stay close to the cell without a dedicated PC vision host per station. Mono for luminance-based metrology, presence, and most defect algorithms under controlled lighting. No integrated illumination in this configuration — size external lighting (optionally via light output on the I/O). Digital I/O and network on industrial connectors for trigger, results, and optional lamp drive.
Select variant
SKU: mv-sc6250m-00c-nnn
Specifications
| Certification | CE, KC |
|---|---|
| Communication protocol | TCP, UDP, ModBus, Serial Port, Profinet, EtherNet/IP, Fins, MC, FTP, etc. |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 17-pin M12 male connector provides power and I/O, providing opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, light source output (max. 30 W) × 1 |
| Dimension | 116.3 mm × 68.6 mm × 101.8 mm (4.6" × 2.7" × 4.0") |
| Exposure time | 16 μs to 1 sec |
| Extended interface | 17-pin M12 female connector provides VGA × 1 and USB host × 1 |
| Function module | VM Platform |
| Gain | 10 dB to 25 dB |
| Humidity | 20% RH to 95% RH, no condensation |
| Indicator | Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Lens cap | Transparent lens cap |
| Lens mount | C-mount |
| Light source | Not included |
| Max. frame rate | 20 fps |
| Memory | 16 GB |
| Mono/color | Mono |
| Pixel format | Mono 8 |
| Pixel size | 2.5 μm × 2.5 μm |
| Power consumption | Approx. 15 W @ 24 VDC (without external light source) Approx. 45 W @ 24 VDC (with external light source) |
| Power supply | 24 VDC |
| Resolution | 5120 × 5120 |
| Sensor size | 1.1" |
| Sensor type | CMOS, global shutter |
| Storage | 64 GB |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Weight | Approx. 530 g (1.2 lb.) |
