MV-SC3016C-06M-WBN
Color · RGB 8, Mono 8 · 6 mm
mv-sc3016c-06m-wbn
Smart Camera

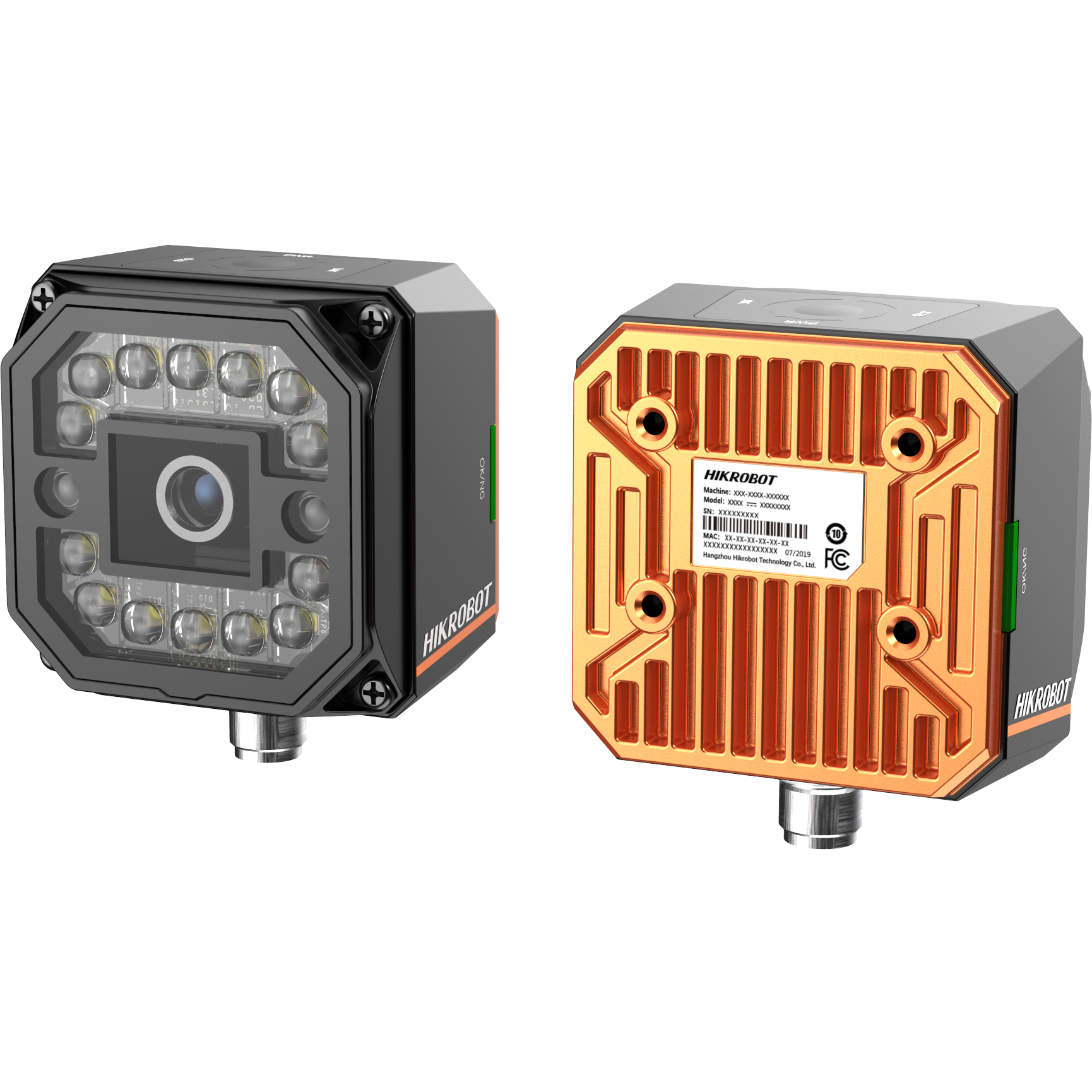

The Hikrobot MV-SC3016C-06M-WBN (SC smart camera) is a smart camera at 1408 × 1024. CMOS, global shutter (1/2.9").
Max. frame rate 60 fps. Data interface Fast Ethernet (100 Mbit/s). Lens mount M12-mount, mechanical autofocus lens.
On-device vision: tools and decisions on the camera, useful when inspection logic must stay close to the cell without a dedicated PC vision host per station. Illumination per specification: 14 LEDs, white light by default. Red or blue is optional.. Digital I/O and network on industrial connectors for trigger, results, and optional lamp drive.
Beschikbare configuraties
- mv-sc3016c-06m-wbn — Color · RGB 8, Mono 8 · 6 mm
- mv-sc3016c-12m-wbn — Color · RGB 8, Mono 8 · 12.4 mm
- mv-sc3016c-15m-wbn — Color · RGB 8, Mono 8 · 14.8 mm
- mv-sc3016m-06m-wbn — Mono · Mono 8 · 6 mm
- mv-sc3016m-12m-wbn — Mono · Mono 8 · 12.4 mm
- mv-sc3016m-15m-wbn — Mono · Mono 8 · 14.8 mm
Select variant
SKU: mv-sc3016c-06m-wbn
Specifications
| Certification | CE, KC |
|---|---|
| Client software | SCMVS |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP. |
| Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") |
| Dynamic range | 71.4 dB |
| Exposure time | 16 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Humidity | 20% RH to 95% RH (no condensation) |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Ingress protection | IP67 (under proper installation of lens and wiring) |
| Lens cap | Transparent lens cap. Polarization or infrared filter lens cap is optional. |
| Lens mount | M12-mount, mechanical autofocus lens |
| Light source | 14 LEDs, white light by default. Red or blue is optional. |
| Max. frame rate | 60 fps |
| Max. power consumption | Approx. 48 W@ 24 VDC |
| Focal length | 6 mm |
| Mono/color | Color |
| Pixel format | RGB 8, Mono 8 |
| Pixel size | 3.45 μm × 3.45 μm |
| Power supply | 24 VDC |
| Resolution | 1408 × 1024 |
| Sensor size | 1/2.9" |
| Sensor type | CMOS, global shutter |
| SNR | 41 dB |
| Solution capacity | Supports solution importing and exporting, up to 32 solutions can be stored. |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Weight | Approx. 280 g (0.6 lb.) |
