MV-CL166-91F2C
mv-cl166-91f2c
Line Scan Camera

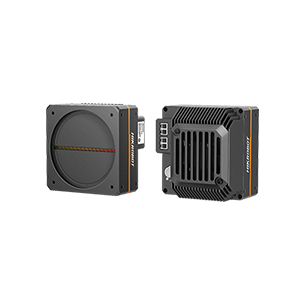

The Hikrobot MV-CL166-91F2C is a line-scan camera at 16384 × 12, color. Pixel size 5 μm × 5 μm.
Line rate 47.3 kHz (1-line), 45. Interface: 2LC fiber connector. Lens mount: M90*1.0, flange focal length 12 mm, applicable to F-mount via lens adapter.
Line scan for continuous webs and streams where the optical axis is perpendicular to motion and resolution must scale across material width. Color build when print or chromatic features on the web dominate. TDI modes (where specified) raise effective sensitivity at high line rate at the cost of tighter sync.
Select variant
SKU: mv-cl166-91f2c
Specifications
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
|---|---|
| Certification | CE, RoHS, KC |
| Client software | MVS |
| Compatibility | XoFLink, GenICam |
| Data interface | 2LC fiber connector |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Dimension | 99 mm × 99 mm × 83.4 mm (3.9" × 3.9" × 3.3") |
| Dynamic range | 69.3 dB |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure |
| Exposure time | 3 μs to 10 ms |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Gain | 1.0 × |
| Humidity | 5% RH to 90% RH (no condensation) |
| Image mode | Supports 1-line, 2-TDI, 3-TDI, 4-TDI |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Lens mount | M90*1.0, flange focal length 12 mm, applicable to F-mount via lens adapter |
| Max. line rate | 47.3 kHz (1-line), 45.3 kHz (2-TDI), 30.6 kHz (3-TDI), 23.1 kHz (4-TDI) |
| Mono/color | Color |
| Operating system | 32/64-bit Windows XP/7/10/11 |
| Pixel format | RGB 8, BGR 8 |
| Pixel size | 5 μm × 5 μm |
| Power consumption | Typ. 22.5 W @ 24 VDC |
| Power supply | 24 VDC |
| Resolution | 16384 × 12 |
| Reverse image | Supports horizontal reverse image output |
| Sensor type | CMOS |
| SNR | 41.4 dB |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Trigger mode | External trigger, internal trigger |
| Weight | Approx. 923 g (2.0 lb.) |
