MV-CL086-91CC
8192 × 6 · Camera Link (SDR connector); USB interface for updating firmware
mv-cl086-91cc
Line Scan Camera

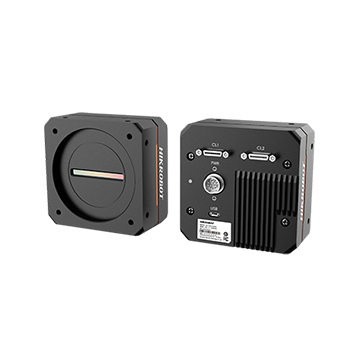

The Hikrobot MV-CL086-91CC is a line-scan camera, color. Pixel size 5 μm.
Interface: Camera Link (SDR connector); USB interface for updating firmware or Gigabit Ethernet, compatible with Fast Ethernet.
Line scan for continuous webs and streams where the optical axis is perpendicular to motion and resolution must scale across material width. Interface options Camera Link (SDR connector); USB interface for updating firmware or Gigabit Ethernet, compatible with Fast Ethernet: Camera Link or fiber when bandwidth or distance requires it, including a matching frame grabber. Color build when print or chromatic features on the web dominate.
Beschikbare configuraties
- mv-cl086-91cc — 8192 × 6 · Camera Link (SDR connector); USB interface for updating firmware
- mv-cl086-91gc — 8192 × 6 · Gigabit Ethernet, compatible with Fast Ethernet
- mv-cl086-91cc-pro — 8192 × 12 · Camera Link (SDR connector); USB interface for updating firmware
Select variant
SKU: mv-cl086-91cc
Specifications
| Exposure time | 3 μs to 10 ms |
|---|---|
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Humidity | 5% to 90% RH, non-condensing |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Mono/color | Color |
| Data interface | Camera Link (SDR connector); USB interface for updating firmware |
| Resolution | 8192 × 6 |
| Pixel size | 5 μm |
| Reverse image | Supports horizontal reverse image output |
| Sensor type | CMOS |
| Trigger mode | External trigger, internal trigger |
