MV-RS

Base · RGB: 3200 × 1944 Depth: 1632 × 1080 · RoHS, CE

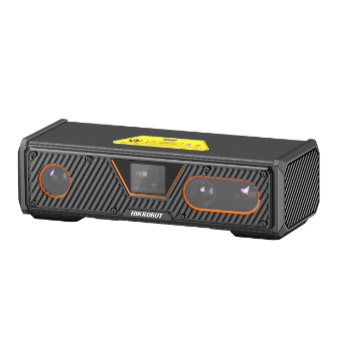

MV-RS-Base-S

3D Camera

De MV-RS-Base-S is de configuratie voor korte afstanden binnen de MV-RS-familie. Hij combineert een vrije afstand van 400 mm en een meetbereik van 400 mm met een typisch beeldveld van 480 × 320 mm bij 600 mm. Op die afstand bedraagt de opgegeven VDI/VDE-nauwkeurigheid 0,05 mm en de herhaalbaarheid op de Z-as 0,03 mm.
Available configurations
  • MV-RS-Base-S — Base · RGB: 3200 × 1944 Depth: 1632 × 1080 · RoHS, CE
  • MV-RS-Base-L — Base · RGB: 3200 × 1944 Depth: 1632 × 1264 · RoHS, CE
  • MV-RS-Base-M — Base · RGB: 3200 × 1944 Depth: 1632 × 1264 · RoHS
  • MV-RS-Pro-XL — Pro

Select variant

SKU: MV-RS-Base-S
Price on request
Key Feature Customized optical system provides high-quality image. Supports high-uniformity laser module to provide a more detailed point cloud. Supports multi-core parallel processing with high precision and high image acquisition rate. Supports alignment between depth images and RGB images, convenient for secondary development. Adopts light-weight design and small size with high stability for flexible installation and use. Available Model MV-RS-Base-S Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Specifications

BrandHikrobot
CategoryBinocular structured-light stereo 3D camera
Clearance distance (CD)400 mm
Document: Data SheetMV-RS-Base-S Galvanometer Laser 3D Camera_datasheet_20251119.pdf
Document: DrawingMV-RS-Base-S.zip
DocumentsMV-RS-Base-S.zip, UD46988B_Binocular Structured Light Stereo Camera User Manual_V3.0.0_20260617.pdf, MV-RS-Base-S Galvanometer Laser 3D Camera_datasheet_20251119.pdf, MV-RS-Base-L.zip, MV-RS-Base-L Galvanometer Laser 3D Camera_datasheet_20251119.pdf, MV-RS-Base-M.zip, MV-RS-Base-M Galvanometer Laser 3D Camera_datasheet_20251218.pdf, MV-RS-Pro-XL.zip, MV-RS-Pro-XL Galvanometer Laser 3D Camera_datasheet_20251119.pdf
Electrical feature: Data interfaceGigabit Ethernet (1000 Mbit/s)
Electrical feature: Digital I/O12-pin M12: 3 opto-isolated inputs (Line 0/3/6) and 3 opto-isolated outputs (Line 1/4/7)
Electrical feature: Power consumptionTypically 15 W at 24 VDC
Electrical feature: Power supply24 VDC
Far field of view620 mm × 440 mm @ 800 mm
General: CertificationRoHS, CE
General: Client softwareRobotPilot, HiViewer
General: Operating systemWindows 7/10 (32/64-bit), Windows 11 (64-bit)
Laser: Laser safety classClass 2
Laser: Wavelength450 nm
Material code306400344
Measurement range (MR)400 mm
Mechanical: Dimension236.3 × 79.8 × 98.5 mm
Mechanical: Humidity20% to 85% RH, non-condensing
Mechanical: Ingress protectionIP65
Mechanical: TemperatureOperating: 0 to 45 °C; storage: -30 to 80 °C
Mechanical: WeightApprox. 1.3 kg
modelMV-RS-Base-S
Model: Product ModelMV-RS-Base-S
Model: TypeGalvanometer Laser 3D Camera(MV-RS-Base-S)
Near field of view280 mm × 220 mm @ 400 mm
CertificationRoHS, CE
ResolutionRGB: 3200 × 1944 Depth: 1632 × 1080
SeriesBase
Performance: Clearance distance (CD)400 mm
Performance: Data acquisition time0.4 to 0.9 s
Performance: Data typeMonochrome and color source images, depth images and RGB-D images
Performance: Far field of view620 × 440 mm at 800 mm
Performance: Image output delay0.8 to 1.5 s
Performance: Measurement range (MR)400 mm
Performance: Near field of view280 × 220 mm at 400 mm
Performance: Repeatability (Z-axis)*0.03 mm at 600 mm
Performance: ResolutionRGB: 3200 × 1944; depth: 1632 × 1080
Performance: Typical field of view480 × 320 mm at 600 mm
Performance: VDI/VDE accuracy*0.05 mm at 600 mm
Related productsLRS-50-24, AC power cables_EUR_E2p_C13_1.5
SeriesRoboScan Series
