MV-DP4000

Typ. 20.6 W @ 24 VDC · Software trigger, external trigger (differential encoder) · 405 nm · Variant 1

MV-DP4020-01P

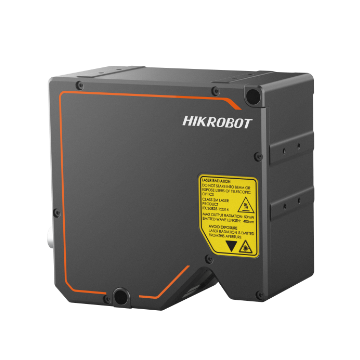

3D Camera

Key Feature Adopts high-speed, high-resolution, and large-pixel element image chips. Adopts FPGA hardware with 49 KHz scan frame rate. Provides customized large iris lens and ultra-uniform laser optical solution. Adopts ultra-high subpixel algorithm and accuracy is up to submicron level. Supports multiple exposure modes with good robustness. Adopts multiple-frame integration technology to provide complete profiles. Provides multiple filter modes with stable data. Adopts integrated design for easy installation and debugging. Available Model MV-DP4020-01P Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Beschikbare configuraties

MV-DP4020-01P — Typ. 20.6 W @ 24 VDC · Software trigger, external trigger (differential encoder) · 405 nm · Variant 1
MV-DP4060-01P — Typ. 20.6 W @ 24 VDC · Software trigger, hardware trigger (differential encoder) · 405 nm · Variant 2
MV-DP4090-01P — Typ. 20.6 W @ 24 VDC · Software trigger, external trigger (differential encoder) · 405 nm · Variant 3
MV-DP4180-01P — Typ. 20.6 W @ 24 VDC · Software trigger, external trigger (differential encoder) · 405 nm · Variant 4
MV-DP4180-03P — Typ. 20.6 W @ 24 VDC · Software trigger, hardware trigger (differential encoder) · 650 nm · Variant 5
MV-DP4430-01P — Typ. 20 W @ 24 VDC · Software trigger, hardware trigger (differential encoder) · 405 nm · Variant 6
MV-DP4430-03P — Typ. 20 W @ 24 VDC · Software trigger, external trigger (differential encoder) · 650 nm · Variant 7
MV-DP4940-03P — Typ. 20 W @ 24 VDC · Software trigger, external trigger (differential encoder) · 650 nm · Variant 8

Aantal

Select variant

Power consumption

Trigger mode

Wavelength

Variant

SKU: MV-DP4020-01P

Specifications

Brand	Hikrobot
Category	3D Laser Profile Sensor
Data points/profile	4080
Document: 3D MODEL	MV-DP4020-01P.obj
Document: Data Sheet	MV-DP4020-01P 3D Laser Profile Sensor_datasheet_20250414.pdf
Document: Drawing	MV-DP4020-01P.zip
Documents	MV-DP4020-01P.obj, MV-DP4020-01P.zip, MV-DP4020-01P 3D Laser Profile Sensor_datasheet_20250414.pdf, UD47444B_3D Laser Profile Sensor 2.0_User Manual_V2.0.0_20260729.pdf, MV-DP4060-01P.obj, MV-DP4060-01P.zip, MV-DP4060-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP4090-01P 3D Laser Profile Sensor_datasheet_20250414.pdf, MV-DP4090-01P.zip, MV-DP4180-01P.obj, MV-DP4180-01P 3D Laser Profile Sensor_datasheet_20250414.pdf, MV-DP4180-01P.zip, MV-DP4180-03P.obj, MV-DP4180-03P.zip, MV-DP4180-03P 3D Laser Profile Sensor_datasheet_20260727.pdf, MV-DP4430-01P.obj, MV-DP4430-01P.zip, MV-DP4430-01P 3D Laser Profile Sensor_datasheet_20260730.pdf, MV-DP4430-03P.obj, MV-DP4430-03P 3D Laser Profile Sensor_datasheet_20250414.pdf, MV-DP4430-03P.zip, MV-DP4940-03P 3D Laser Profile Sensor_datasheet_20250414.pdf, MV-DP4940-03P.zip
Electrical feature: Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Electrical feature: Digital I/O	12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Electrical feature: Power consumption	Typ. 20.6 W @ 24 VDC
Electrical feature: Power supply	24 VDC
General: Client software	3DMVS (V3.1.0 and above), VM3D, or third-party software
General: Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
Material code	306400457
Measurement range (X-axis)	13.5 mm @ near field of view 14 mm @ reference distance 14.5 mm @ far field of view
Measurement range (Z-axis)	5.2 mm
Mechanical: Dimension	129 mm × 125 mm × 69 mm (5.1" × 4.9" × 2.7")
Mechanical: Humidity	20% RH to 85% RH (no condensation)
Mechanical: Ingress protection	IP67
Mechanical: Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Mechanical: Weight	Approx. 1330 g (2.9 lb.)
model	MV-DP4020-01P
Model: Product Model	MV-DP4020-01P
Model: Type	3D Laser Profile Sensor
Power consumption	Typ. 20.6 W @ 24 VDC
Trigger mode	Software trigger, external trigger (differential encoder)
Variant	Variant 1
Wavelength	405 nm
Performance: Data output	Profile data, depth image, brightness image
Performance: Data points/profile	4080
Performance: Laser safety class	Class 3B
Performance: Linearity Z-axis (±% of MR)	0.01
Performance: Measurement range (X-axis)	13.5 mm @ near field of view 14 mm @ reference distance 14.5 mm @ far field of view
Performance: Measurement range (Z-axis)	5.2 mm
Performance: Profile data interval	3.3 μm to 3.9 μm
Performance: Reference distance	22.6 mm
Performance: Repeatability (Z-axis)*	0.15 μm @ data that sensor tests gauge block on optical platform
Performance: Resolution (Z-axis)	0.41 μm to 0.58 μm
Performance: Scan frame rate	2.5 kHz (within max. measurement range), max. 49 kHz (in ROI mode)
Performance: Trigger mode	Software trigger, external trigger (differential encoder)
Performance: Wavelength	405 nm
Reference distance	22.6 mm
Repeatability (Z-axis)*	0.15 μm @ data that sensor tests gauge block on optical platform
Series	DP4000 Series
