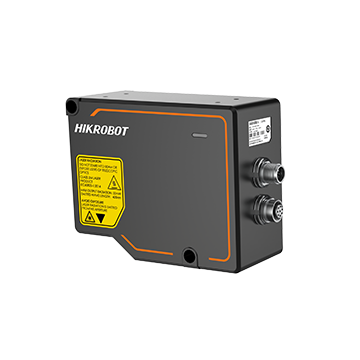

MV-DP2000

3DMVS · Profile data, depth image, brightness image · Class 3R · Variant 1

MV-DP2020-01P-V2.0

3D Camera

Key Feature Built-in high-accuracy algorithm and accuracy is up to submicron level. Adopts high frame rate chip with 23.9 kHz scan frame rate. Supports multiple exposure modes with good robustness. Adopts multiple-frame integration technology to provide complete profiles. Provides multiple filter modes with stable data. Supports ROI selection and auto setting for easier operation. Available Model MV-DP2020-01P V2.0 Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Beschikbare configuraties

MV-DP2020-01P-V2.0 — 3DMVS · Profile data, depth image, brightness image · Class 3R · Variant 1
MV-DP2050-01P-V2.0 — 3DMVS, VM3D, or third-party software · Original image, profile data, depth image, brightness image · Class 3R · Variant 2
MV-DP2060-01P-V2.0 — 3DMVS, VM3D, or third-party software · Original image, profile data, depth image, brightness image · Class 3R · Variant 3
MV-DP2061-01P-V2.0 — 3DMVS, VM3D, or third-party software · Original image, profile data, depth image, brightness image · Class 3B · Variant 4
MV-DP2062-01P-V2.0 — 3DMVS, VM3D, or third-party software · Profile data, depth image, brightness image · Class 3B · Variant 5
MV-DP2080-01P-V2.0 — 3DMVS, VM3D, or third-party software · Original image, profile data, depth image, brightness image · Class 3R · Variant 6
MV-DP2120-01P-V2.0 — 3DMVS, VM3D, or third-party software · Original image, profile data, depth image, brightness image · Class 3R · Variant 7
MV-DP2120-03P-V2.0 — 3DMVS, VM3D, or third-party software · Original image, profile data, depth image, brightness image · Class 3R · Variant 8
MV-DP2140-01P-V2.0 — 3DMVS, VM3D, or third-party software · Original image, profile data, depth image, brightness image · Class 3R · Variant 9
MV-DP2240-01P-V2.0 — 3DMVS, VM3D, or third-party software · Profile data, depth image, brightness image · Class 3R · Variant 10
MV-DP2240-03P-V2.0 — 3DMVS, VM3D, or third-party software · Profile data, depth image, brightness image · Class 3R · Variant 11
MV-DP2470-01P-V2.0 — 3DMVS, VM3D, or third-party software · Profile data, depth image, brightness image · Class 3B · Variant 12
MV-DP2470-03P-V2.0 — 3DMVS, VM3D, or third-party software · Profile data, depth image, brightness image · Class 3R · Variant 13
MV-DP2900-03P-V2.0 — 3DMVS, VM3D, or third-party software · Profile data, depth image, brightness image · Class 3R · Variant 14

Aantal

Select variant

Client software

Data output

Laser safety class

Variant

SKU: MV-DP2020-01P-V2.0

Specifications

Brand	Hikrobot
Category	3D Laser Profile Sensor
Data points/profile	3200
Document: Data Sheet	MV-DP2020-01P 3D Laser Profile Sensor_datasheet_20251127.pdf
Document: User Manual	UD47444B_3D Laser Profile Sensor 2.0_User Manual_V2.0.0_20260729.pdf
Documents	UD47444B_3D Laser Profile Sensor 2.0_User Manual_V2.0.0_20260729.pdf, MV-DP2020-01P 3D Laser Profile Sensor_datasheet_20251127.pdf, MV-DP2050-01P.obj, MV-DP2050-01P.zip, MV-DP2050-01P 3D Laser Profile Sensor_datasheet_20250905.pdf, MV-DP2060-01P.obj, MV-DP2060-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP2060-01P.zip, UD40172B_3D Laser Profile Sensor_User Manual_V2.1.0_20241028.pdf, MV-DP2061-01P.obj, MV-DP2061-01P.zip, MV-DP2061-01P 3D Laser Profile Sensor_datasheet_20250905.pdf, MV-DP2062-01P.obj, MV-DP2062-01P.zip, MV-DP2062-01P 3D Laser Profile Sensor_datasheet_20251127.pdf, MV-DP2080-01P.obj, MV-DP2080-01P 3D Laser Profile Sensor_datasheet_20250905.pdf, MV-DP2080-01P.zip, MV-DP2120-01P.obj, MV-DP2120-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP2120-01P.zip, MV-DP2120-03P.zip, MV-DP2120-03P 3D Laser Profile Sensor_datasheet_20260121.pdf, MV-DP2140-01P.obj, MV-DP2140-01P 3D Laser Profile Sensor_datasheet_20250905.pdf, MV-DP2140-01P.zip, MV-DP2240-01P.obj, MV-DP2240-01P.zip, MV-DP2240-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP2240-03P.obj, MV-DP2240-03P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP2240-03P.zip, MV-DP2470-01P.obj, MV-DP2470-01P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP2470-01P.zip, MV-DP2470-03P V2.0.obj, MV-DP2470-03P 3D Laser Profile Sensor_datasheet_20251218.pdf, MV-DP2470-03P.zip, MV-DP2900-03P V2.0.obj, MV-DP2900-03P.zip, MV-DP2900-03P 3D Laser Profile Sensor_datasheet_20251218.pdf
Electrical feature: Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Electrical feature: Digital I/O	12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1)
Electrical feature: Power consumption	Typ. 15.2 W @ 24 VDC
Electrical feature: Power supply	24 VDC
General: Client software	3DMVS
General: Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)
Material code	306400482
Measurement range (X-axis)	14 mm @ near field of view 14.3 mm @ reference distance 14.6 mm @ far field of view
Mechanical: Dimension	139.5 mm × 111.5 mm × 60.5 mm (5.5" × 4.4" × 2.4")
Mechanical: Humidity	20% RH to 85% RH (no condensation)
Mechanical: Ingress protection	IP67
Mechanical: Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Mechanical: Weight	Approx. 1075 g (2.4 lb.)
model	MV-DP2020-01P-V2.0
Model: Product Model	MV-DP2020-01P V2.0
Model: Type	MV-DP2020-01P V2.0
Client software	3DMVS
Data output	Profile data, depth image, brightness image
Laser safety class	Class 3R
Variant	Variant 1
Performance: Data output	Profile data, depth image, brightness image
Performance: Data points/profile	3200
Performance: Laser safety class	Class 3R
Performance: Linearity Z-axis (±% of MR)	0.01
Performance: Measurement range (X-axis)	14 mm @ near field of view 14.3 mm @ reference distance 14.6 mm @ far field of view
Performance: Measurement range (Z-axis)	6.8 mm
Performance: Profile data interval	4.38 μm to 4.67 μm
Performance: Reference distance	21.4 mm
Performance: Repeatability (Z-axis)*	0.22 μm @ data that sensor tests gauge block on optical platform
Performance: Resolution (Z-axis)	0.71 μm to 0.78 μm
Performance: Scan frame rate	1.7 kHz to 23.9 kHz (high frame rate mode)
Performance: Trigger mode	Software trigger, hardware trigger (differential encoder)
Performance: Wavelength	405 nm
Reference distance	21.4 mm
Repeatability (Z-axis)*	0.22 μm @ data that sensor tests gauge block on optical platform
Series	DP2000 Series
