MV-DL2125

± 5 mm (regular object)

MV-DL2125-04H-R

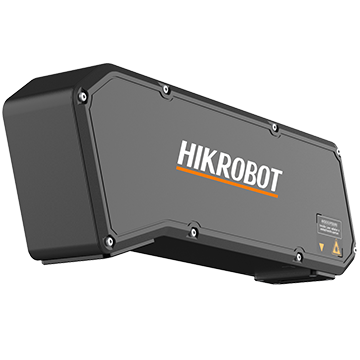

3D Camera

Key Feature Adopts wide dynamic range algorithm to accurately measure materials of high-absorbance or high-reflection. Detection speed up to 3 m/s and accuracy of ± 5 mm. Adopts high-power laser module with wide dynamic range. Adopts narrow band pass filter to suppress the interference. Stable performance with simultaneous exposure and laser. Supports outputting data type of length/width/height, integral volume, point cloud data, and location coordinates. Available Model MV-DL2125-04H-R Dimension *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Beschikbare configuraties

MV-DL2125-04H-R — ± 5 mm (regular object)
MV-DL2125-04P-R — ± 5 mm (standard object)

Aantal

Select variant

Detection accuracy

SKU: MV-DL2125-04H-R

Specifications

Brand	Hikrobot
Category	3D Cameras for Logistics
Clearance distance (CD)	700 mm
Document: Data Sheet	MV-DL2125-04H-R Line Laser 3D Camera_datasheet_20240327.pdf
Document: Drawing	MV-DL2125-04H-R.zip
Document: User Manual	UD40938B_Line Laser 3D Camera_User Manual_V2.0.0_20241217.pdf
Documents	MV-DL2125-04H-R Line Laser 3D Camera_datasheet_20240327.pdf, UD40938B_Line Laser 3D Camera_User Manual_V2.0.0_20241217.pdf, MV-DL2125-04H-R.zip, MV-DL2125-04P-R.zip, MV-DL2125-04P-R Line Laser 3D Camera_datasheet_20260323.pdf
Electrical feature: Data interface	Gigabit Ethernet (1000 Mbit/s)
Electrical feature: Digital I/O	12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7), RS-232 × 1.
Electrical feature: Power consumption	Typ. 10 W @ 12 VDC
Electrical feature: Power supply	12 VDC to 24 VDC
Far field of view	2600 mm
General: Certification	CE
General: Client software	3DMVS, CodePlatform
General: Operating system	32/64-bit Windows 7/10
Material code	306400150
Measurement range (MR)	1000 mm
Mechanical: Dimension	354.1 mm × 65 mm × 123.4 mm (13.9" × 2.6" × 4.9")
Mechanical: Humidity	20%RH to 85% RH, no condensation
Mechanical: Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Mechanical: Weight	1.6 kg (3.5 lb.)
model	MV-DL2125-04H-R
Model: Product Model	MV-DL2125-04H-R
Model: Type	Line Laser 3D Camera
Near field of view	1000 mm
Detection accuracy	± 5 mm (regular object)
Performance: Clearance distance (CD)	700 mm
Performance: Data type	Point cloud data, length/width/height, integral volume, peak coordinates, depth image
Performance: Detection accuracy	± 5 mm (regular object)
Performance: Detection speed	3 m/s @ ±5 mm detection accuracy
Performance: Far field of view	2600 mm
Performance: Laser safety class	Class 3B
Performance: Measurement range (MR)	1000 mm
Performance: Near field of view	1000 mm
Performance: Scan frame rate	600 fps @ 1 m3 measurement range
Performance: Trigger mode	External trigger, encoder trigger (max. 15 KHz trigger signal supported)
Related products	MV-IDA-E-M12A8pF-RJ45-HF, MV-IDA-E-M12A8pF-RJ45-ST, MV-IDA-P-M12A12pF-open-ST, MV-IDA-P-M12A12pF-open-HF
Series	Express Logistics
