MV-SC2005AM-02WBN
mv-sc2005am-02wbn
Smart Camera

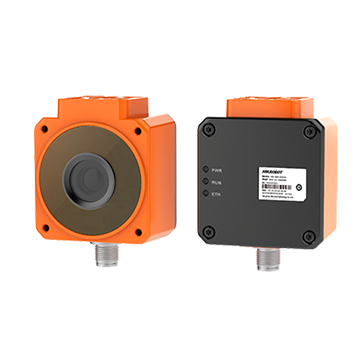

De Hikrobot MV-SC2005AM-02WBN (SC smart camera) is een smart camera met 800 × 600, mono. CMOS, global shutter (1/3.6").
Max. framesnelheid 100 fps. Data-interface Fast Ethernet (100 Mbit/sec), RS-485.
On-device vision: tools en beslissingen op de camera, bruikbaar wanneer de inspectielogica dicht bij de cel moet blijven zonder dedicated PC-visionhost per station. Mono voor luminantie-gebaseerde metrologie, aanwezigheid en de meeste defectalgoritmen onder gestuurde belichting. Digitale I/O en netwerk op industriële connectoren voor trigger, resultaat en eventuele lampaansturing.
Select variant
SKU: mv-sc2005am-02wbn
Specifications
| Angle accuracy | 0.1° |
|---|---|
| Certificering | CE, RoHS |
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, UDP, Serial |
| Datainterface | Fast Ethernet (100 Mbit/sec), RS-485 |
| Digitale I/O | 12-pin M12 connector provides power supply and RS-485 × 1 |
| Afmetingen | 68 mm × 60 mm × 40.8 mm (2.7" × 2.4" × 1.6") |
| Displacement accuracy | 0.1 mm |
| Belichtingstijd | 20 μs to 9000 μs |
| Field of view | 93.8° |
| Field of view (range) | 170 mm × 130 mm (it is the field of view under 100 mm ± 5 mm working distance. If the working distance changes, the field of view will vary too.) |
| Brandpuntsafstand | 2.5 mm |
| Gain | 1 dB to 330 dB |
| Luchtvochtigheid | 10% to 90% RH, niet-condenserend |
| Beschermingsgraad | IP65 (with proper installation of waterproof lens cap) |
| Max. framesnelheid | 100 fps |
| Max. stroomverbruik | 18 W@ 24 VDC (self light source enabled) 3 W@ 24 VDC (self light source disabled) |
| Max. reading speed | 100 codes/sec |
| Max. running speed | 3 m/sec (it is the AGV's max. running speed) |
| Mono/kleur | Mono |
| Pixelgrootte | 4.8 μm × 4.8 μm |
| Voeding | 24 VDC |
| Resolutie | 800 × 600 |
| Sensorgrootte | 1/3.6" |
| Sensortype | CMOS, global shutter |
| Symbologies | 2-dimensional codes: DM-12, DM-14 |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 200 g (0.4 lb.) |
| Working distance | 100 mm ± 5 mm |
