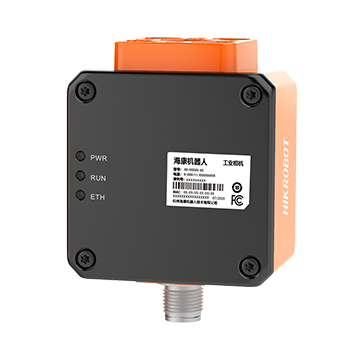

MV-SC2005AC-02WBN
68 mm × 60 mm × 40.8 mm (2.7" × 2.4" × 1.6")
mv-sc2005ac-02wbn
Smart Camera
De Hikrobot MV-SC2005AC-02WBN (SC smart camera) is een smart camera met 800 × 600, color. CMOS, global shutter (1/3.6").
Max. framesnelheid 96 fps. Data-interface Fast Ethernet (100 Mbit/sec), RS-485.
On-device vision: tools en beslissingen op de camera, bruikbaar wanneer de inspectielogica dicht bij de cel moet blijven zonder dedicated PC-visionhost per station. Kleur wanneer chromatische scheiding deel van de acceptatiecriteria is. Digitale I/O en netwerk op industriële connectoren voor trigger, resultaat en eventuele lampaansturing.
Beschikbare configuraties
- mv-sc2005ac-02wbn — 68 mm × 60 mm × 40.8 mm (2.7" × 2.4" × 1.6")
- mv-sc2005ac-03wbn — 68 mm × 60 mm × 42.2 mm (2.7" × 2.4" × 1.7")
Select variant
SKU: mv-sc2005ac-02wbn
Specifications
| Angle accuracy | 0.1° |
|---|---|
| Certificering | CE, RoHS |
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, UDP, Serial, Modbus, Profinet, EthernetIP |
| Datainterface | Fast Ethernet (100 Mbit/sec), RS-485 |
| Digitale I/O | 12-pin M12 connector provides power supply and RS-485 × 1 |
| Displacement accuracy | 0.1 mm |
| Belichtingstijd | 20 μs to 9000 μs |
| Gain | 1 dB to 330 dB |
| Luchtvochtigheid | 10% RH to 90% RH (geen condensatie) |
| Beschermingsgraad | IP65 (with proper installation of waterproof lens cap) |
| Max. framesnelheid | 96 fps |
| Max. stroomverbruik | 18 W @ 24 VDC (self light source enabled) 3 W @ 24 VDC (self light source disabled) |
| Max. reading speed | 83 codes/sec |
| Max. running speed | 3 m/sec (it is the AGV's max. running speed) |
| Mono/kleur | Kleur |
| Dimension | 68 mm × 60 mm × 40.8 mm (2.7" × 2.4" × 1.6") |
| Pixelformaat | RGB |
| Pixelgrootte | 4.8 μm × 4.8 μm |
| Voeding | 24 VDC |
| Resolutie | 800 × 600 |
| Sensorgrootte | 1/3.6" |
| Sensortype | CMOS, global shutter |
| Symbologies | 2-dimensional codes: DM-12, DM-14 |
| Temperatuur | Werktemperatuur: –10 °C to 50 °C (14 °F to 122 °F) Opslagtemperatuur: –30 °C to 70 °C (–22 °F to 158 °F) |
| Gewicht | Circa 200 g (0.4 lb.) |
| Working distance | 100 mm ± 5 mm |
