MV-IDH7000

12 VDC to 24 VDC · 10NR-07RN-L

mv-idh7000p-10nr-07rn-l

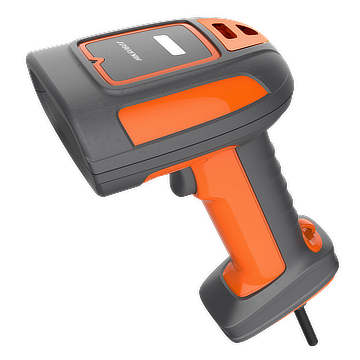

Handheld Code Reader

MV-IDH7000P-10NR-07RN-L is een handheld industriële codereader voor handmatig scannen van 1D-, 2D- of DPM-codes bij productie- en logistieke stations. Kies de uitvoering op ondersteunde codes, leesafstand, bedrade of draadloze verbinding en vereiste beschermingsgraad. Test kleine of contrastarme directe markeringen vooraf.

Beschikbare configuraties

mv-idh7000p-10nr-07rn-l — 12 VDC to 24 VDC · 10NR-07RN-L
mv-idh7000p-10nr-07rn-u — 5 VDC (USB 2.0), 12 VDC to 24 VDC (DC terminal) · 10NR-07RN-U
mv-idh7000p-10sr-07rn-l — 12 VDC to 24 VDC · 10SR-07RN-L
mv-idh7000p-10sr-07rn-u — 5 VDC (USB 2.0), 12 VDC to 24 VDC (DC terminal) · 10SR-07RN-U
mv-idh7000b-10nr-07rn — Not specified · Not specified · 3 mil · 10NR-07RN-L
mv-idh7000b-10sr-07rn — Not specified · Not specified · Not specified · 10NR-07RN-U
mv-idh7000b-10nr-07rn-ls — Fast Ethernet (100 Mbit/s), RS-232, DC terminal · 4 h · 3 mil · 10SR-07RN-L
mv-idh7000b-10nr-07rn-us — USB 2.0, DC terminal2 · Adapter: 4 h, USB: 8 h · 3 mil · 10SR-07RN-U
mv-idh7000b-10sr-07rn-ls — Fast Ethernet (100 Mbit/s), RS-232, DC terminal · 4 h · 3 mil · 10SR-07RN-LS
mv-idh7000b-10sr-07rn-us — USB 2.0, DC terminal2 · Adapter: 4 h, USB: 8 h · 3 mil · 10SR-07RN-US
mv-idh7000b-10er-07rn-us-pm — USB 2.0, DC terminal2 · Adapter: 4 h, USB: 8 h · 5 mil · 10ER-07RN-US-PM
mv-idh7000b-10hhd-07rn-ls-pm — Fast Ethernet (100 Mbit/s), RS-232, DC terminal · 4 h · 3 mil · 10HHD-07RN-LS-PM
mv-idh7000b-10hhd-07rn-us-pm — USB 2.0, DC terminal2 · Adapter: 4 h, USB: 8 h · 3 mil · 10HHD-07RN-US-PM

Aantal

Select variant

Power supply

Model

Datainterface

Charging time

Min. nauwkeurigheid

SKU: mv-idh7000p-10nr-07rn-l

Prijs op aanvraag

Specifications

Richtsysteem	Cross laser aiming
Ambient illumination	0 lux to 100000 lux
Certificering	CE, KC
Clientsoftware	IDMVS
Communicatieprotocol	Network interface: SmartSDK, TCP, FTP, HTTP, Profinet, MELSEC/SLMP, Ethernet/IP, Modbus, UDP, Fins, Serial USB interface: SmartSDK, USB (HID/CDC)
Current consumption	USB 2.0: 0.9 A (max.), 0.5 A (typical) DC terminal: 0.5 A (max.), 0.28 A (typical)
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Afmetingen	73.4 mm × 104 mm × 229.5 mm (2.9" × 4.1" × 9.0")
Field of view	Horizontal 31°, vertical 20°
Brandpuntsafstand	6.7 mm
Luchtvochtigheid	20% RH to 95% RH (niet-condenserend)
Beschermingsgraad	IP65
Laserklasse	Laser 2
Lichtbron	Direct lighting: white LED Diffused reflection lighting: red LED
Maximum power	1 mW
Min. accuracy	3 mil
Power supply	12 VDC to 24 VDC
Model	10NR-07RN-L
Pulse width	8 ms
Resolutie	1280 × 800
Sensortype	CMOS
Symbol contrast	20%
Symbologieën	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417
Temperatuur	In bedrijf temperature: –10 °C to 50 °C (14 °F to 122 °F) Opslag temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Golflengte	650 nm
Gewicht	Ca.. 460 g (1.0 lb.)
