MV-ID7080EM-35F-WHA V3.0
mv-id7080em-35f-wha-v3-0
Smart Code Reader

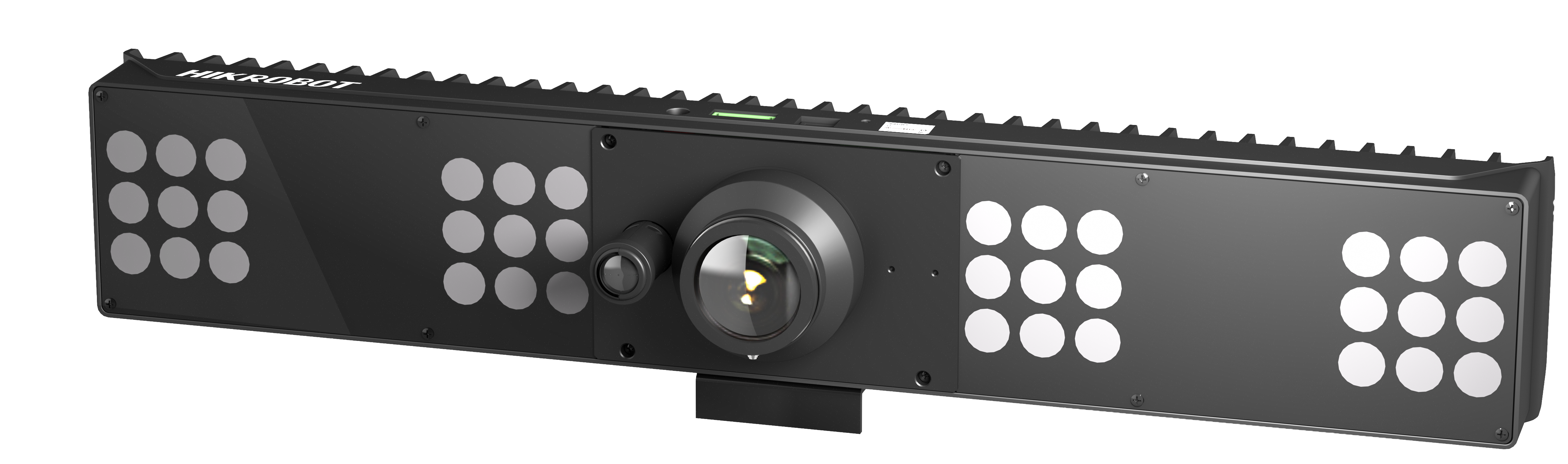

De Hikrobot MV-ID7080EM-35F-WHA V3.0 (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 7424 × 1. Mono Optiek 35 mm. Interface Gigabit Ethernet (1000 Mbit/s).
Dimensionering: leesafstand, modulegrootte en oppervlakteglans bepalen of standaard voorlicht volstaat of dark-field/polarisatie nodig is.
Select variant
SKU: mv-id7080em-35f-wha-v3-0
Specifications
| Richtsysteem | Green LED |
|---|---|
| Best working distance | 1000 mm |
| Certificering | CE, RoHS, KC |
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP |
| Datainterface | Gigabit Ethernet (1000 Mbit/s) |
| Digitale I/O | 10-pin green terminal provides I/O, including differential input (LineIn 0) × 1, opto-isolated input (LineIn 1) × 1, opto-isolated output (LineOut 3/4) × 2, and RS-232 × 1. |
| Afmetingen | 608.3 mm × 127.6 mm × 167.1 mm (23.9" × 5.0" × 6.6") |
| Field of view (range) | 1000 mm @ 10 mil |
| Brandpuntsafstand | 35 mm |
| Luchtvochtigheid | 20% RH to 95% RH, niet-condenserend |
| Lensvatting | F-mount, flange back focal length 46.5 mm |
| Max. line frequency | 15 kHz |
| Max. operating speed of conveyer belt | 2.5 m/s |
| Max. stroomverbruik | 180 W @ 48 VDC |
| Mono/kleur | Mono |
| Besturingssysteem | 32/64-bit Windows XP/7/10 |
| Voeding | 48 VDC |
| Resolutie | 7424 × 1 |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix Stacked barcode: PDF417 |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: –30 °C to 70 °C (–22 °F to 158 °F) |
| Gewicht | Circa 5 kg (11 lb.) |
