MV-ID5050XM-08L-RBN
Not specified · 08L-RBN
mv-id5050xm-08l-rbn
Smart Code Reader

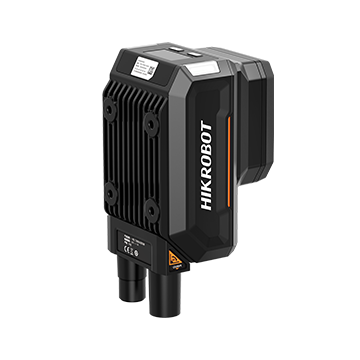

De Hikrobot MV-ID5050XM-08L-RBN (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 2432 × 2048. 60 fps. Mono Optiek Half polarization lens cap by default. Transparent and full polarization caps are optional.. Interface Gigabit Ethernet (1000 Mbit/s). Belichting Red light by default. White/blue/IR light is optional..
Varianten verschillen in brandpuntsafstand, belichting en cover (o.a. polarisatie): smaller FOV / langer brandpunt voor fijne modules op afstand; wijder FOV voor grotere etiketten dichterbij.
Beschikbare configuraties
- mv-id5050xm-08l-rbn — Not specified · 08L-RBN
- mv-id5050xm-08m-rbn — 8 mm · 08M-RBN
- mv-id5050xm-12l-rbn — Not specified · 12L-RBN
- mv-id5050xm-12m-rbn — 12 mm · 12M-RBN
- mv-id5050xm-16l-rbn — Not specified · 16L-RBN
- mv-id5050xm-16m-rbn — 16 mm · 16M-RBN
- mv-id5050xm-25m-rbn — 25 mm · 25M-RBN
Select variant
SKU: mv-id5050xm-08l-rbn
Specifications
| Certificering | CE, KC |
|---|---|
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, Fins, UDP |
| Datainterface | Gigabit Ethernet (1000 Mbit/s) |
| Digitale I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1 Supports device triggering via pressing on touchscreen. |
| Afmetingen | Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4") Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2") |
| Belichtingstijd | 6 μs to 3000 μs |
| Gain | 0 dB to 37 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Indicator | Multi-directional device body indicator |
| Beschermingsgraad | IP67 |
| Lensdop | Half polarization lens cap by default. Transparent and full polarization caps are optional. |
| Lichtbron | Red light by default. White/blue/IR light is optional. |
| Max. framesnelheid | 60 fps |
| Max. stroomverbruik | 12 W @ 24 VDC (light source enabled) |
| Max. reading speed | 96 codes/sec |
| Mono/kleur | Mono |
| Brandpuntsafstand | Niet gespecificeerd |
| Model | 08L-RBN |
| Pixelgrootte | 3.45 μm × 3.45 μm |
| Voeding | 24 VDC |
| Resolutie | 2432 × 2048 |
| Sensorgrootte | 1/1.45" |
| Sensortype | CMOS, global shutter |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin Stacked codes: PDF 417 |
| Gewicht | Circa 410 g (0.9 lb.) |
