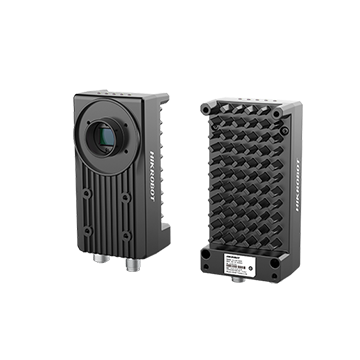

MV-ID6200EM-00C-NNG
mv-id6200em-00c-nng
Smart Code Reader
De Hikrobot MV-ID6200EM-00C-NNG (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 5440 × 3648. 10 fps. Mono Optiek Not included. Interface Gigabit Ethernet. Belichting niet meegeleverd.
Dimensionering: leesafstand, modulegrootte en oppervlakteglans bepalen of standaard voorlicht volstaat of dark-field/polarisatie nodig is.
Select variant
SKU: mv-id6200em-00c-nng
Specifications
| Certificering | CE, RoHS |
|---|---|
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP |
| Datainterface | Gigabit Ethernet |
| Digitale I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 3/4/5) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. |
| Afmetingen | 126 mm × 66 mm × 55.3 mm (5.0" × 2.6" × 2.2") |
| Belichtingstijd | 16 μs to 500 ms |
| Gain | 0 dB to 40 dB |
| Luchtvochtigheid | 20% to 95% RH, niet-condenserend |
| Beschermingsgraad | IP64 |
| Lensdop | Not included |
| Lensvatting | C-mount |
| Lichtbron | Not included |
| Max. framesnelheid | 10 fps |
| Max. stroomverbruik | 12 W@ 24 VDC |
| Max. reading speed | 30 codes/sec |
| Mono/kleur | Mono |
| Pixelgrootte | 2.4 μm × 2.4 μm |
| Voeding | 12 VDC to 24 VDC |
| Resolutie | 5440 × 3648 |
| Sensorgrootte | 1" |
| Sensortype | CMOS, rolling shutter |
| Symbologies | 1-dimensional codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 550 g (1.2 lb.) |
