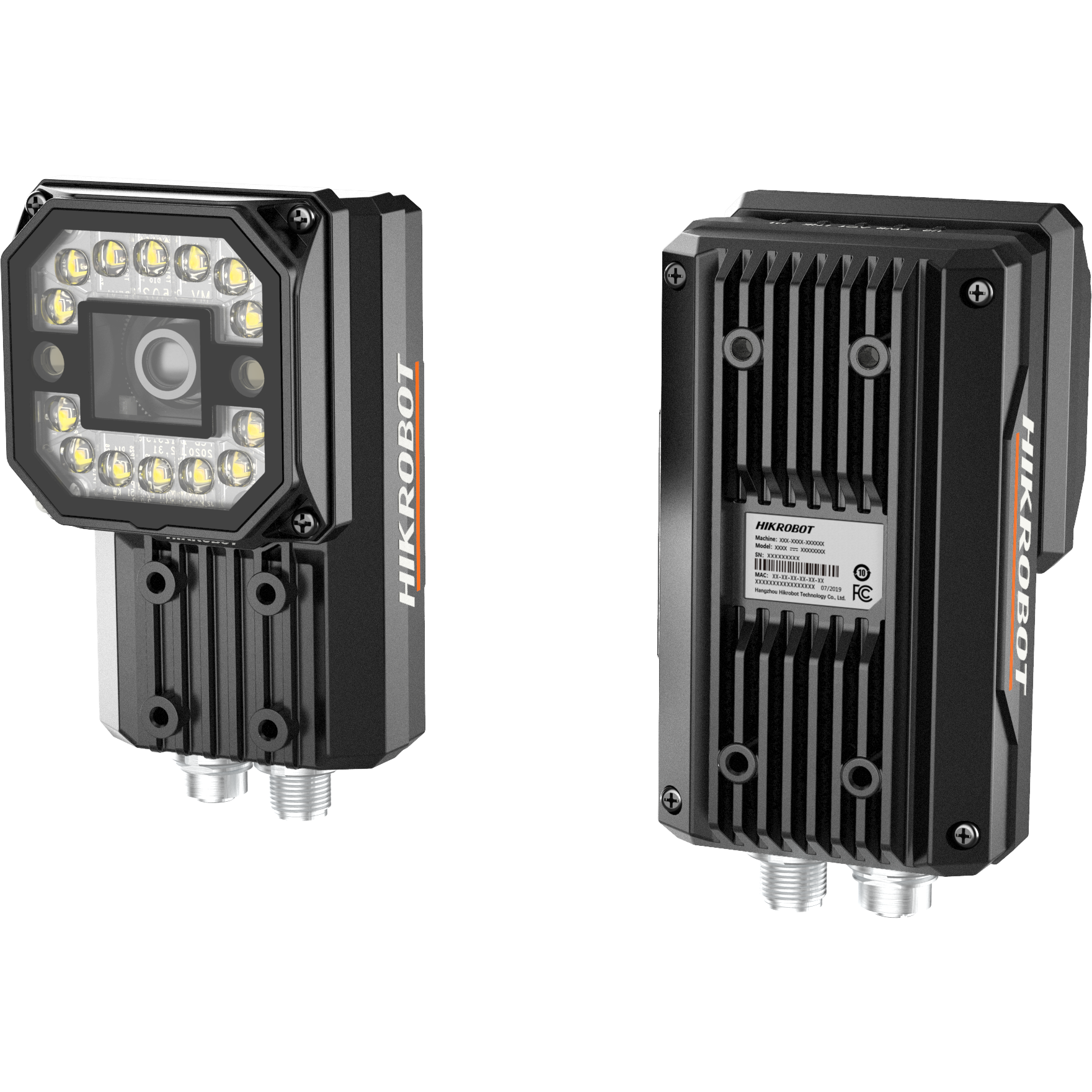

MV-ID5050M-08S-WBN
mv-id5050m-08s-wbn
Smart Code Reader
De Hikrobot MV-ID5050M-08S-WBN (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 2560 × 2048. 40 fps. Mono Optiek Half polarization lens cap by default. Transparent and full polarization lens cap are optional.. Interface Gigabit Ethernet (1000 Mbit/s). Belichting White light by default. Red/blue/IR light is optional..
Varianten verschillen in brandpuntsafstand, belichting en cover (o.a. polarisatie): smaller FOV / langer brandpunt voor fijne modules op afstand; wijder FOV voor grotere etiketten dichterbij.
Select variant
SKU: mv-id5050m-08s-wbn
Specifications
| Certificering | CE, RoHS, KC |
|---|---|
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP |
| Datainterface | Gigabit Ethernet (1000 Mbit/s) |
| Digitale I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Afmetingen | 112.5 mm × 65.5 mm × 63.3 mm (4.4" × 2.6" × 2.5") |
| Belichtingstijd | 60 μs to 1 sec |
| Gain | 0 dB to 18 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Indicator | Voedingsindicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
| Beschermingsgraad | IP67 (under proper installation of waterproof lens cap) |
| Lensdop | Half polarization lens cap by default. Transparent and full polarization lens cap are optional. |
| Lensvatting | M12-mount, mechanical autofocus supported. |
| Lichtbron | White light by default. Red/blue/IR light is optional. |
| Max. framesnelheid | 40 fps |
| Max. stroomverbruik | 60 W @ 24 VDC (light source enabled) |
| Max. reading speed | 90 codes/sec |
| Mono/kleur | Mono |
| Pixelgrootte | 3.2 μm × 3.2 μm |
| Voeding | 24 VDC |
| Resolutie | 2560 × 2048 |
| Sensorgrootte | 1/1.7" |
| Sensortype | CMOS, global shutter |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417 |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: –30 °C to 70 °C (–22 °F to 158 °F) |
| Gewicht | Circa 450 g (1.0 lb.) |
