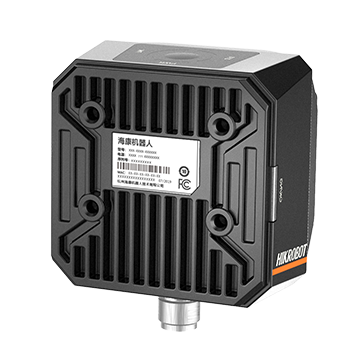

MV-ID3050PM-08M-WBN
mv-id3050pm-08m-wbn
Smart Code Reader
De Hikrobot MV-ID3050PM-08M-WBN (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 2432 × 2048. 50 fps. Mono Optiek Half polarization lens cap by default. Polarization lens cap and transparent lens cap are optional.. Interface Fast Ethernet (100 Mbit/s). Belichting Spotlight white light. Spotlight red/blue/IR/UV light is optional..
Varianten verschillen in brandpuntsafstand, belichting en cover (o.a. polarisatie): smaller FOV / langer brandpunt voor fijne modules op afstand; wijder FOV voor grotere etiketten dichterbij.
Select variant
SKU: mv-id3050pm-08m-wbn
Specifications
| Certificering | CE, RoHS, KC |
|---|---|
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP |
| Datainterface | Fast Ethernet (100 Mbit/s) |
| Digitale I/O | 17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Afmetingen | 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") |
| Belichtingstijd | 60 μs to 1 sec |
| Gain | 0 dB to 18 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Indicator | Voedingsindicator (PWR), network indicator (LNK), status indicator (STS), resultaatindicator (OK/NG) |
| Beschermingsgraad | IP67 (under proper installation of waterproof lens cap) |
| Lensdop | Half polarization lens cap by default. Polarization lens cap and Transparante lensdop are optional. |
| Lensvatting | M12-mount, mechanical focus supported |
| Lichtbron | Spotlight white light. Spotlight red/blue/IR/UV light is optional. |
| Max. framesnelheid | 50 fps |
| Max. stroomverbruik | Avg.: 10.6 W @ 24 VDC (light source enabled) Max.: 45 W @ 24 VDC (light source enabled) |
| Max. reading speed | 60 codes/sec |
| Mono/kleur | Mono |
| Pixelgrootte | 3.4 μm × 3.4 μm |
| Voeding | 24 VDC |
| Resolutie | 2432 × 2048 |
| Sensorgrootte | 1/1.7" |
| Sensortype | CMOS, global shutter |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin Stacked codes: PDF417 |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: –30 °C to 70 °C (–22 °F to 158 °F) |
| Gewicht | Circa 280 g (0.6 lb.) |
