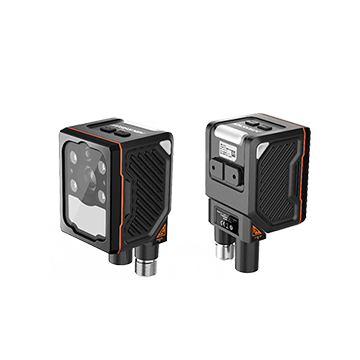

MV-ID3016XM-08M-RBN
mv-id3016xm-08m-rbn
Smart Code Reader
De Hikrobot MV-ID3016XM-08M-RBN (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 1408 × 1024. 60 fps. Mono Optiek Transparent + polarized + diffused lens cap. Interface Fast Ethernet (100 Mbit/s). Belichting Red point light source + white diffused light source. White/blue/IR point light source is optional..
Varianten verschillen in brandpuntsafstand, belichting en cover (o.a. polarisatie): smaller FOV / langer brandpunt voor fijne modules op afstand; wijder FOV voor grotere etiketten dichterbij.
Select variant
SKU: mv-id3016xm-08m-rbn
Specifications
| Richtsysteem | Oranje LED |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP |
| Datainterface | Fast Ethernet (100 Mbit/s) |
| Digitale I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. Triggering the device is supported via pressing the top button. |
| Afmetingen | Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6") |
| Belichtingstijd | 25 μs to 30000 μs |
| Gain | 0 dB to 24 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Indicator | Device body indicator, reading resultaatindicator |
| Beschermingsgraad | IP67 (under proper installation of waterproof lens cap) |
| Lensdop | Transparent + polarized + diffused lens cap |
| Lichtbron | Red point light source + white diffused light source. White/blue/IR point light source is optional. |
| Max. framesnelheid | 60 fps |
| Max. stroomverbruik | 6.2 W @ 24 VDC (self-light source enabled) |
| Max. reading speed | 110 codes/sec |
| Mono/kleur | Mono |
| Pixelgrootte | 3.45 μm × 3.45 μm |
| Voeding | 24 VDC |
| Resolutie | 1408 × 1024 |
| Sensorgrootte | 1/2.9" |
| Sensortype | CMOS, global shutter |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF14, ITF25, MATRIX25, UPCA, UPCE, MSI, Code 11, Industrial 25, China Post, and Pharmacode 2D codes: QR Code, Data Matrix, and Micro QR Stacked codes: PDF 417 |
| Gewicht | Circa 195 g (0.4 lb.) |
