MV-ID3016PM-06M-WBN
mv-id3016pm-06m-wbn
Smart Code Reader

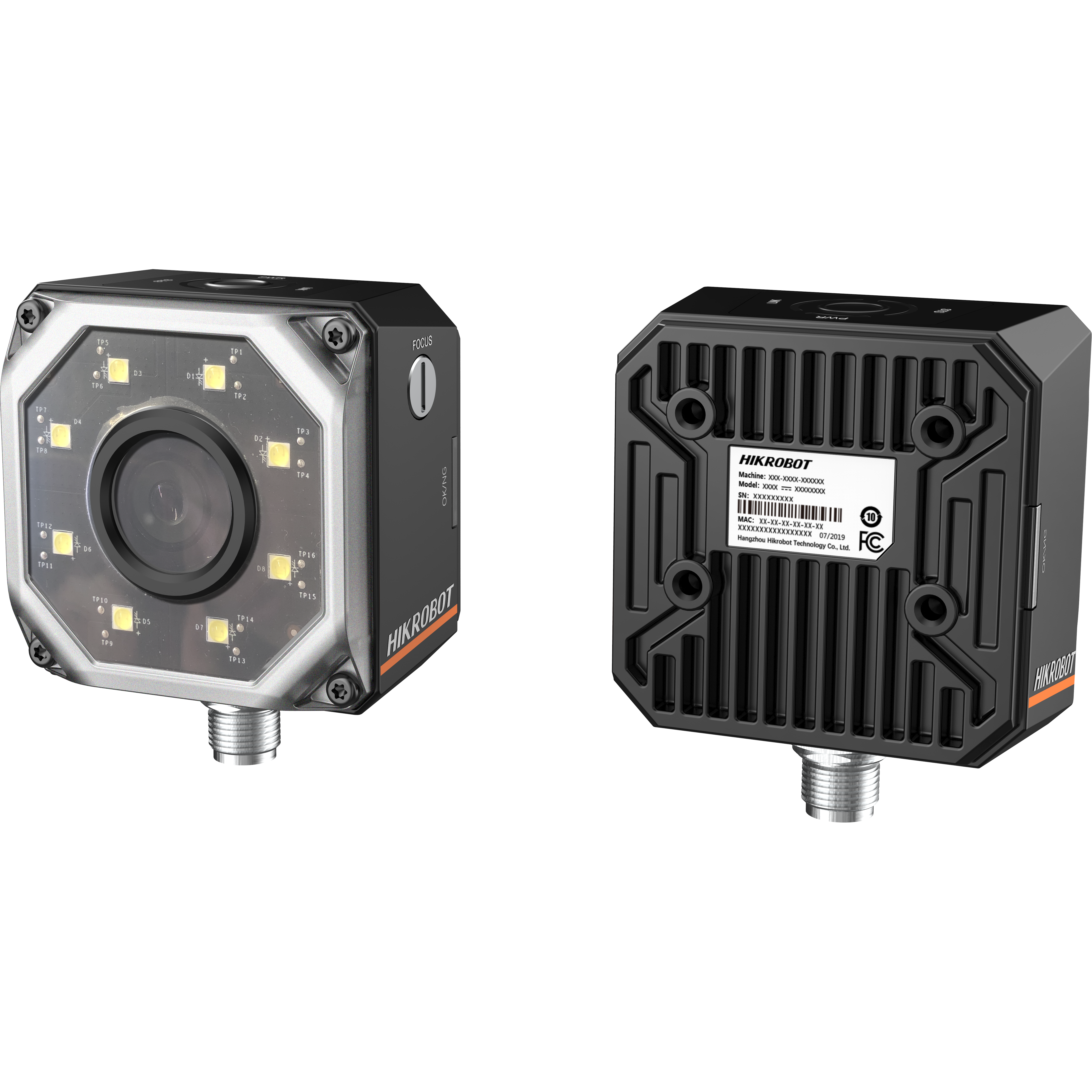

De Hikrobot MV-ID3016PM-06M-WBN (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 1408 × 1024. 60 fps. Mono Optiek Transparent lens cap. Polarization lens cap is optional.. Interface Fast Ethernet. Belichting Spotlight white light. Spotlight red/blue/IR, en wide-angle white/red/blue light is optional..
Varianten verschillen in brandpuntsafstand, belichting en cover (o.a. polarisatie): smaller FOV / langer brandpunt voor fijne modules op afstand; wijder FOV voor grotere etiketten dichterbij.
Select variant
SKU: mv-id3016pm-06m-wbn
Specifications
| Certificering | CE, FCC, RoHS, KC |
|---|---|
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, TCP Client, TCP Server, UDP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, ModBus |
| Datainterface | Fast Ethernet |
| Digitale I/O | 17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Device trigger via pressing button on top supported. |
| Afmetingen | 65.2 mm × 65.2 mm × 42 mm (2.6" × 2.6" × 1.7") |
| Belichtingstijd | 16 μs to 1 sec |
| Gain | 0 dB to 40 dB |
| Luchtvochtigheid | 20% to 95% RH, niet-condenserend |
| Indicator | Voedingsindicator (PWR), network indicator (LNK), status indicator (STS), resultaatindicator (OK/NG) |
| Beschermingsgraad | IP67 (under proper installation of waterproof lens cap) |
| Lensdop | Transparante lensdop. Polarization lens cap is optional. |
| Lensvatting | M12-mount, mechanical autofocus. |
| Lichtbron | Spotlight white light. Spotlight red/blue/IR, and wide-angle white/red/blue light is optional. |
| Max. framesnelheid | 60 fps |
| Max. stroomverbruik | 20 W@ 24 VDC (light source enabled) |
| Max. reading speed | 84 codes/sec |
| Mono/kleur | Mono |
| Pixelgrootte | 3.45 μm × 3.45 μm |
| Voeding | 24 VDC |
| Resolutie | 1408 × 1024 |
| Sensorgrootte | 1/2.9" |
| Sensortype | CMOS, global shutter |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 25, CodaBar, EAN, MATRIX 25, MSI, Industrial 25, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 250 g (0.6 lb.) |
