MV-ID2016M-06S-BBN
Fast Ethernet (100 Mbit/s) · M10-mount, adjusting focus manually supported · 16 μs to 1 sec · 06S-BBN
mv-id2016m-06s-bbn

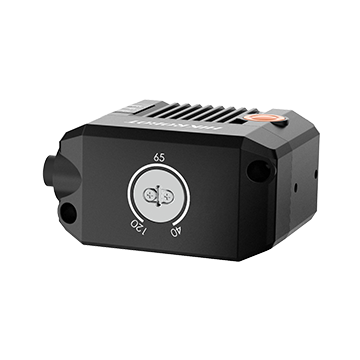

Smart Code Reader
De Hikrobot MV-ID2016M-06S-BBN (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 1408 × 1024. 60 fps. Mono Belichting 0 lux to 50000 lux.
Varianten verschillen in brandpuntsafstand, belichting en cover (o.a. polarisatie): smaller FOV / langer brandpunt voor fijne modules op afstand; wijder FOV voor grotere etiketten dichterbij.
Beschikbare configuraties
- mv-id2016m-06s-bbn — Fast Ethernet (100 Mbit/s) · M10-mount, adjusting focus manually supported · 16 μs to 1 sec · 06S-BBN
- mv-id2016m-06s-rbn — Fast Ethernet (100 Mbit/s) · M10-mount, adjusting focus manually supported · 16 μs to 1 sec · 06S-RBN
- mv-id2016m-06s-wbn — Fast Ethernet (100 Mbit/s) · M10-mount, adjusting focus manually supported · 16 μs to 1 sec · 06S-WBN
- mv-id2016m-06t-rbp — Fast Ethernet (100 Mbit/s) · M12-mount · 16 μs to 20000 μs · 06T-RBP
- mv-id2016m-10t-rbp — Fast Ethernet (100 Mbit/s) · M12-mount · 16 μs to 20000 μs · 10T-RBP
- mv-id2016m-16s-rbn — Fast Ethernet (100 Mbit/s) · M12-mount, adjusting focus manually supported · 16 μs to 1 sec · 16S-RBN
- mv-id2016m-16t-rbn — Fast Ethernet (100 Mbit/s) · M12-mount · 16 μs to 20000 μs · 16T-RBN
- mv-id2016m-25s-rbn — Fast Ethernet (100 Mbit/s) · M12-mount, adjusting focus manually supported · 16 μs to 1 sec · 25S-RBN
- mv-id2016m-06s-bbn-u — USB 3.0 · M10-mount, adjusting focus manually supported · 16 μs to 1 sec · 06S-BBN-U
- mv-id2016m-06s-rbn-u — USB 3.0 · M10-mount, adjusting focus manually supported · 16 μs to 1 sec · 06S-RBN-U
- mv-id2016m-06s-wbn-u — USB 3.0 · M10-mount, adjusting focus manually supported · 16 μs to 1 sec · 06S-WBN-U
Select variant
SKU: mv-id2016m-06s-bbn
Specifications
| Ambient illumination | 0 lux to 50000 lux |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | IDMVS |
| Gain | 0 dB to 15 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Beschermingsgraad | IP65 |
| Max. framesnelheid | 60 fps |
| Mono/kleur | Mono |
| Datainterface | Fast Ethernet (100 Mbit/s) |
| Exposure time | 16 μs to 1 sec |
| Lensvatting | M10-mount, adjusting focus manually supported |
| Model | 06S-BBN |
| Pixelgrootte | 3.45 μm × 3.45 μm |
| Resolutie | 1408 × 1024 |
| Sensorgrootte | 1/2.9" |
| Sensortype | CMOS, global shutter |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: –30 °C to 70 °C (–22 °F to 158 °F) |
