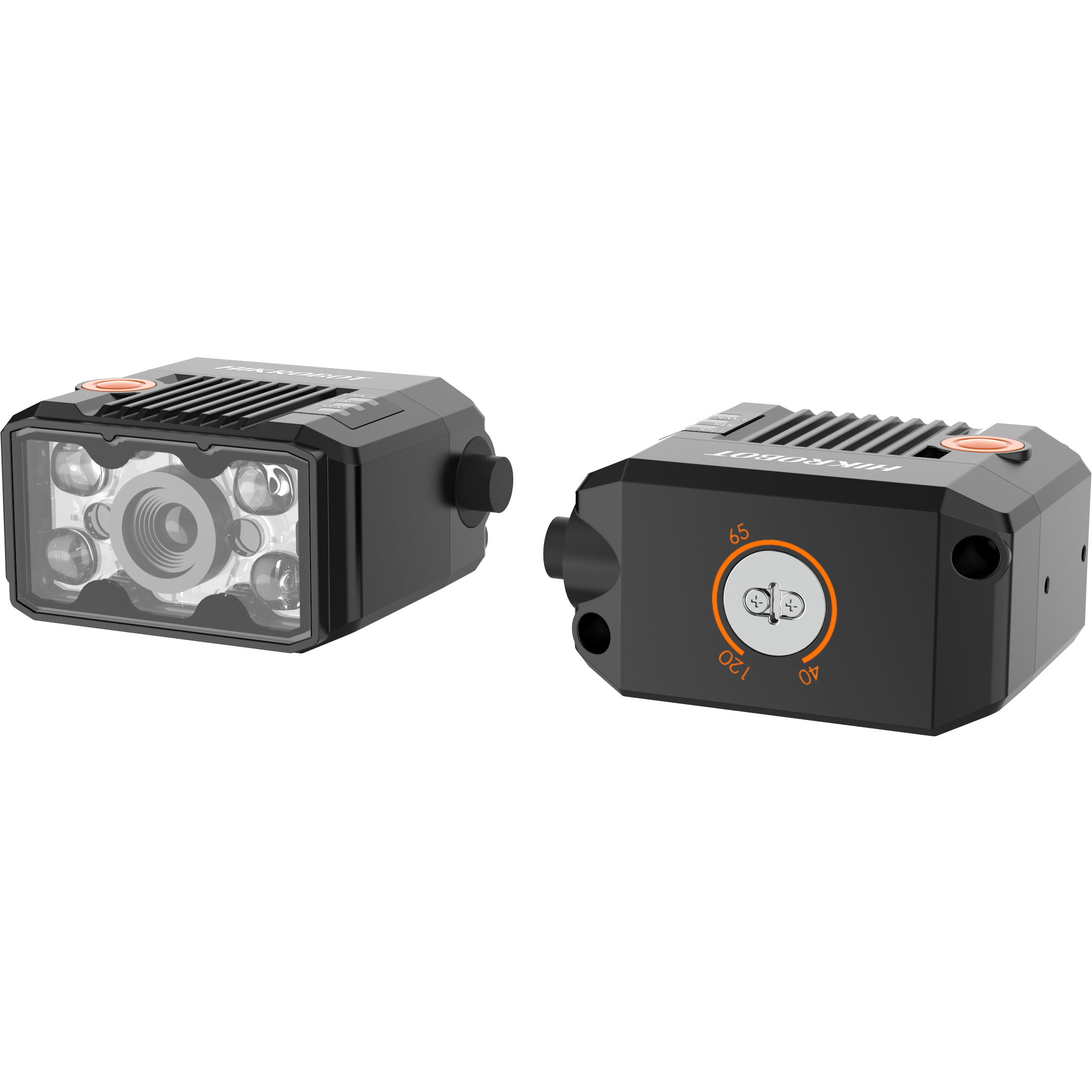

MV-ID2013M-06S-BBN
M10-mount, adjusting focus manually supported · Green LED · 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") · 06S-BBN
mv-id2013m-06s-bbn
Smart Code Reader
De Hikrobot MV-ID2013M-06S-BBN (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 1280 × 1024. 60 fps. Mono Interface Fast Ethernet (100 Mbit/s). Belichting 0 lux to 50000 lux.
Varianten verschillen in brandpuntsafstand, belichting en cover (o.a. polarisatie): smaller FOV / langer brandpunt voor fijne modules op afstand; wijder FOV voor grotere etiketten dichterbij.
Beschikbare configuraties
- mv-id2013m-06s-bbn — M10-mount, adjusting focus manually supported · Green LED · 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") · 06S-BBN
- mv-id2013m-06s-rbn — M10-mount, adjusting focus manually supported · Green LED · 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") · 06S-RBN
- mv-id2013m-06s-rbp — M10-mount, adjusting focus manually supported · Green LED · 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") · 06S-RBP
- mv-id2013m-06s-wbn — M10-mount, adjusting focus manually supported · Green LED · 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") · 06S-WBN
- mv-id2013m-06s-wbp — M10-mount, adjusting focus manually supported · Green LED · 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") · 06S-WBP
- mv-id2013m-16s-rbn — M12-mount, adjusting focus manually supported · Not supported · 46 mm × 25 mm × 57.6 mm (1.8" × 1.0" × 2.3") · 16S-RBN
- mv-id2013m-25s-rbn — M12-mount, adjusting focus manually supported · Not supported · 46 mm × 25 mm × 57.6 mm (1.8" × 1.0" × 2.3") · 25S-RBN
- mv-id2013m-06s-rbn-yag — M10-mount, adjusting focus manually supported · Green LED · 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") · 06S-RBN-YAG
Select variant
SKU: mv-id2013m-06s-bbn
Specifications
| Ambient illumination | 0 lux to 50000 lux |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | IDMVS |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, UDP, Fins |
| Datainterface | Fast Ethernet (100 Mbit/s) |
| Gain | 0 dB to 15 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Beschermingsgraad | IP65 |
| Max. framesnelheid | 60 fps |
| Mono/kleur | Mono |
| Aiming system | Green LED |
| Dimension | 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") |
| Lensvatting | M10-mount, adjusting focus manually supported |
| Model | 06S-BBN |
| Pixelgrootte | 4 μm × 4 μm |
| Voeding | 12 VDC to 24 VDC |
| Resolutie | 1280 × 1024 |
| Sensorgrootte | 1/2.7" |
| Sensortype | CMOS, global shutter |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: –30 °C to 70 °C (–22 °F to 158 °F) |
