MV-ID2013EM-05-RBN
Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05-RBN
mv-id2013em-05-rbn

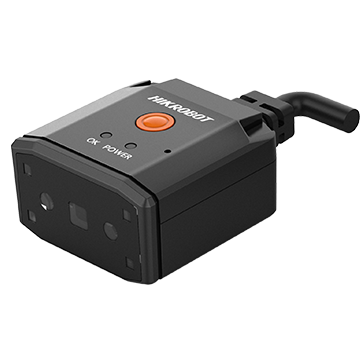

Smart Code Reader
De Hikrobot MV-ID2013EM-05-RBN (ID-lezer) is een vaste smart codelezer voor 1D-/2D-codes en DPM in een getriggerde of free-run stationsetup.
Imager 1280 × 1024. 50 fps. Mono Optiek M5.8-mount. Belichting 0 lux to 10000 lux.
Varianten verschillen in brandpuntsafstand, belichting en cover (o.a. polarisatie): smaller FOV / langer brandpunt voor fijne modules op afstand; wijder FOV voor grotere etiketten dichterbij.
Beschikbare configuraties
- mv-id2013em-05-rbn — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05-RBN
- mv-id2013em-05-rbp — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red (polarized) · 05-RBP
- mv-id2013em-05-wbn — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · White · 05-WBN
- mv-id2013em-05-wbp — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · White (polarized) · 05-WBP
- mv-id2013em-03n-rbn — 2.5 W @ 12 VDC · 2.45 mm · Red · 03N-RBN
- mv-id2013em-03n-rbp — 2.5 W @ 12 VDC · 2.45 mm · Red (polarized) · 03N-RBP
- mv-id2013em-05h-rbn — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05H-RBN
- mv-id2013em-05h-rbp — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red (polarized) · 05H-RBP
- mv-id2013em-05n-rbp — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red (polarized) · 05N-RBP
- mv-id2013em-05-rbn-s — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05-RBN-S
- mv-id2013em-05-rbn-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05-RBN-U
- mv-id2013em-05-rbp-s — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05-RBP-S
- mv-id2013em-05-rbp-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red (polarized) · 05-RBP-U
- mv-id2013em-05-wbn-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · White · 05-WBN-U
- mv-id2013em-05-wbp-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · White (polarized) · 05-WBP-U
- mv-id2013em-05-rbn-su — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05-RBN-SU
- mv-id2013em-05-rbp-su — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05-RBP-SU
- mv-id2013em-05h-rbn-s — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05H-RBN-S
- mv-id2013em-05h-rbn-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05H-RBN-U
- mv-id2013em-05n-rbn-s — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05N-RBN-S
- mv-id2013em-05n-rbn-u — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm · Red · 05N-RBN-U
- mv-id2013em-05h-rbn-su — Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC · 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05H-RBN-SU
- mv-id2013em-05n-rbn-su — 4.7 mm 2.45 mm · Red Red (polarized) White White (polarized) · 05N-RBN-SU · Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC
Select variant
SKU: mv-id2013em-05-rbn
Specifications
| Richtsysteem | Green LED |
|---|---|
| Ambient illumination | 0 lux to 10000 lux |
| Certificering | CE, RoHS, KC |
| Clientsoftware | IDMVS |
| Afmetingen | 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") |
| Belichtingstijd | 60 μs to 0.6 sec |
| Gain | 1 dB to 28 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Indicator | Voedingsindicator (POWER), status indicator (OK/NG) |
| Beschermingsgraad | IP54 |
| Lensvatting | M5.8-mount |
| Max. framesnelheid | 50 fps |
| Max. reading speed | 30 codes/sec |
| Mono/kleur | Mono |
| Brandpuntsafstand | 4.7 mm |
| Lichtbron | Red |
| Max. stroomverbruik | Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC |
| Model | 05-RBN |
| Pixelgrootte | 2.7 μm × 2.7 μm |
| Resolutie | 1280 × 1024 |
| Sensorgrootte | 1/4" |
| Sensortype | CMOS, global shutter |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix |
| Temperatuur | Werktemperatuur: 0 °C to 50 °C (32 °F to 122 °F) Opslagtemperatuur: –30 °C to 70 °C (–22 °F to 158 °F) |
| Gewicht | Circa 68.5 g (0.2 lb.) |
