MV-DT5472-50GC
mv-dt5472-50gc
Area Scan Camera

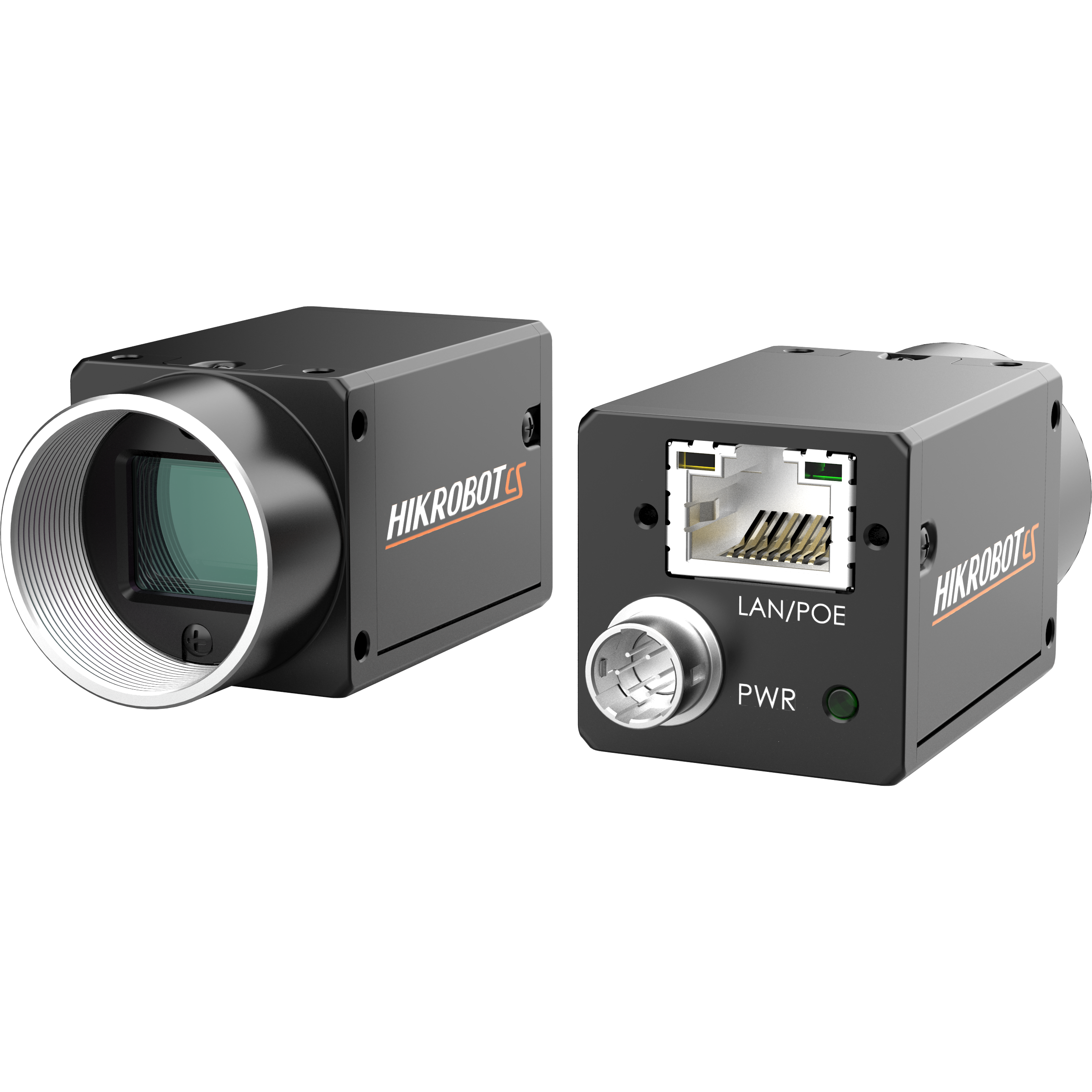

De Hikrobot MV-DT5472-50GC is een area-scancamera met rolling shutter op 5472 × 3648. Sensorformaat 1", pixelpitch 2.4 μm × 2.4 μm.
Sensorvarianten: Sony® IMX183. Framesnelheid volgens datasheet tot 5.9 fps @ 5472 × 3648. Interface: Gigabit Ethernet, compatible with Fast Ethernet. Lensmount: C-Mount.
Kleur-/Bayer-uitvoering voor taken waarbij tint of print meespeelt. Rolling shutter: bij beweging tijdens belichting rekening houden met strobe of stilstand; anders geometric skew.
Select variant
SKU: mv-dt5472-50gc
Specifications
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
|---|---|
| Certificering | CE, RoHS, KC |
| Clientsoftware | MVS or third-party software conform het GigE Vision-protocol |
| Compatibiliteit | GigE Vision V2.0, GenICam |
| Datainterface | Gigabit Ethernet, compatible with Fast Ethernet |
| Decimation | Supports 1 × 1, 2 × 2 |
| Digitale I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Afmetingen | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Dynamisch bereik | 65.5 dB |
| Belichtingsmodus | Off/Once/Continuous exposure auto, supports Timed and Trigger Width exposure mode, and Rolling and Global Reset sensor shutter mode |
| Belichtingstijd | 46 μs to 2.5 sec |
| Gain | 0 dB to 24 dB |
| Luchtvochtigheid | 20% RH to 95% RH (geen condensatie) |
| Beschermingsgraad | IP40 (bij correcte lensmontage en bedrading) |
| Lensvatting | C-Mount |
| Max. framesnelheid | 5.9 fps @ 5472 × 3648 |
| Mono/kleur | Kleur |
| Besturingssysteem | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Pixelformaat | Mono 8/10/12, Bayer GB 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Pixelgrootte | 2.4 μm × 2.4 μm |
| Stroomverbruik | Typ. 2.5 W@ 12 VDC |
| Voeding | 9 VDC to 24 VDC, supports PoE |
| Resolutie | 5472 × 3648 |
| Spiegelbeeld | Supports horizontal and vertical reverse image output |
| Sensormodel | Sony® IMX183 |
| Sensorgrootte | 1" |
| Sensortype | CMOS, rolling shutter |
| SNR | 41.5 dB |
| Temperatuur | Temperature Werktemperatuur: -30 °C to 60 °C (-22 °F to 140 °F) Opslagtemperatuur: -30 °C to 70 °C (-22 °F to 158 °F) |
| Gewicht | Circa 100 g (0.22 lb.) |
