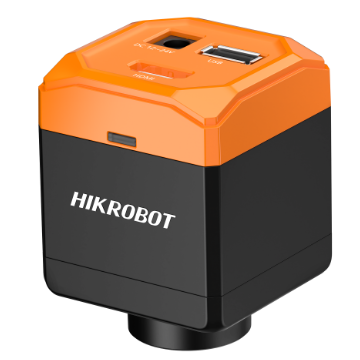

MV-CM2020C-0H
1920 × 1080 · 60.0 fps · USB 2.0 · 0 dB to 42 dB · 12 VDC to 24 VDC, independent power supply required · 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2") · Variant 1
MV-CM2020C-0H
Area Scan Camera
MV-CM2020C-0H is een area-scancamerafamilie voor 2D-inspectie, meting, codelezen en robotgeleiding. Kies de uitvoering op resolutie, mono of kleur, framesnelheid, interface en lensvatting. Voor bewegende producten is een global-shuttermodel meestal passend; kies een andere camerageometrie voor continue banen of dieptemeting.
Beschikbare configuraties
- MV-CM2020C-0H — 1920 × 1080 · 60.0 fps · USB 2.0 · 0 dB to 42 dB · 12 VDC to 24 VDC, independent power supply required · 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2") · Variant 1
- MV-CM3040C-1H — 2560 × 1440 · 30.0 fps · USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 · 0 dB to 18 dB · 12 VDC to 24 VDC, independent power supply required · 75 mm × 75 mm × 86.9 mm (3.0" × 3.0" × 3.4") · 4MP HDMI Camera with Measurement
- MV-CM3040C-1H-MSD — 2560 × 1440 · 30.0 fps · USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 · 0 dB to 18 dB · 12 VDC to 24 VDC, independent power supply required · 75 mm × 75 mm × 86.9 mm (3.0" × 3.0" × 3.4") · 4MP Measurement HDMI Camera with Micro Software Dongle
- MV-CM3120C-1H — 4096 × 3024 · 30.0 fps · USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 · 0 dB to 18 dB · 12 VDC to 24 VDC (requires independet power supply) · 75 mm × 75 mm × 87.3 mm (3.0" × 3.0" × 3.4") · Variant 4
Select variant
SKU: MV-CM2020C-0H
Prijs op aanvraag
Specifications
| Brand | Hikrobot |
|---|---|
| Category | Area Scan Camera |
| Certification | CE, RoHS |
| Console interface | USB 2.0 |
| Dimension | 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2") |
| Document: Data Sheet | MV-CM2020C-0H HDMI Microscope Camera_datasheet_20251216.pdf |
| Document: Drawing | MV-CM2020C-0H.zip |
| Document: Firmware | MV_CM2020C_0H_EN_STD_V1.0.1_260608_HIKROBOT.zip |
| Document: User Manual | UD39955B_HDMI Microscope Camera User Manual_V1.0.1_20241008.pdf |
| Documents | MV_CM2020C_0H_EN_STD_V1.0.1_260608_HIKROBOT.zip, MV-CM2020C-0H.zip, UD39955B_HDMI Microscope Camera User Manual_V1.0.1_20241008.pdf, MV-CM2020C-0H HDMI Microscope Camera_datasheet_20251216.pdf, MV_CM3040C_1H_EN_STD_V1.1.1_260601_HIKROBOT.zip, UD44806B_HDMI Measurement Microscope Camera User Manual_V1.1.0_20251119.pdf, MV-CM3040C-1H.rar, MV-CM3040C-1H HDMI Measurement Microscope Camera_datasheet_20251209.pdf, MV-CM3120C-1H.zip, MV-CM3120C-1H HDMI Measurement Microscope Camera_datasheet_20260122.pdf |
| Electrical feature: Control interface | USB 2.0 |
| Electrical feature: Power | Typ. 1.9 W @ 12 VDC |
| Electrical feature: Power supply | 12 VDC to 24 VDC, independent power supply required |
| Electrical feature: Transmission interface | HDMI |
| Exposure mode | Auto/manual |
| Exposure time | 300 μs to 100 ms |
| Gain | 0 dB to 42 dB |
| General: Certification | CE, RoHS |
| Humidity | 20% RH to 95% RH, no condensation |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Lens mount | C-mount |
| Material code | 306302556 |
| Max. frame rate | 60 fps |
| Mechanical: Dimension | 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2") |
| Mechanical: Humidity | 20% RH to 95% RH (no condensation) |
| Mechanical: Ingress protection | IP30 (under proper lens installation and wiring) |
| Mechanical: Lens mount | C-mount |
| Mechanical: Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Mechanical: Weight | 220 g (0.5 lb.) |
| model | MV-CM2020C-0H |
| Model: Product Model | MV-CM2020C-0H |
| Model: Type | 2MP HDMI Camera |
| Mono/color | Color |
| Control interface | USB 2.0 |
| Dimension | 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2") |
| Gain | 0 dB to 42 dB |
| Max. frame rate | 60.0 fps |
| Power supply | 12 VDC to 24 VDC, independent power supply required |
| Resolution | 1920 × 1080 |
| Variant | Variant 1 |
| Performance: Exposure mode | Auto/manual |
| Performance: Exposure time | 300 μs to 100 ms |
| Performance: Gain | 0 dB to 42 dB |
| Performance: Max. frame rate | 60 fps |
| Performance: Mono/color | Color |
| Performance: Pixel size | 3.75 μm × 3.75 μm |
| Performance: Resolution | 1920 × 1080 |
| Performance: Reverse image | Supports horizontal and vertical reverse image output |
| Performance: Sensor size | 1/2" |
| Performance: Sensor type | CMOS, rolling shutter |
| Pixel size | 3.75 μm × 3.75 μm |
| Power consumption | Typ. 1.9 W @ 12 VDC |
| Power supply | 12 VDC to 24 VDC |
| Resolution | 1920 × 1080 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Sensor size | 1/2" |
| Sensor type | CMOS, rolling shutter |
| Series | HDMI Microscope Camera |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Transmission interface | HDMI |
| Weight | 220 g (0.5 lb.) |
Compare products
Productfamilie
MV-CM2020C-0HGeselecteerde variant
1920 × 1080 · 60.0 fps · USB 2.0 · 0 dB to 42 dB · 12 VDC to 24 VDC, independent power supply required · 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2") · Variant 1
MV-CM2020C-0H
